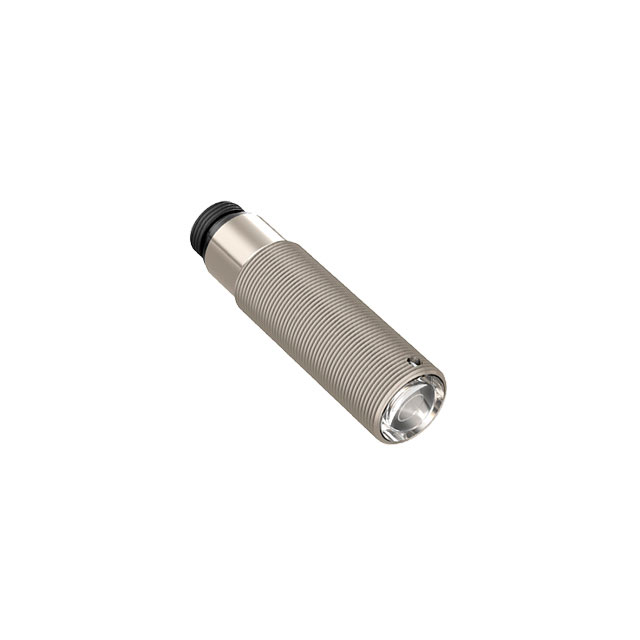

SM2A30SRLQD

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, EZ BEAM®, SM30 SERIES, RECEIVER, 150 M, SOLID STATE RELAY, 24 VAC TO 240 VAC

Search across all available documentation for this part.

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, EZ BEAM®, SM30 SERIES, RECEIVER, 150 M, SOLID STATE RELAY, 24 VAC TO 240 VAC

Technical Specifications

Parameters and characteristics for this part

Part	Output Configuration	Light Source	Sensing Distance	Sensing Distance	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Response Time	Ingress Protection	Connection Method	Cable Length	Cable Length	Sensing Method
BANNER ENGINEERING SM2A30PRLNC W/30	SPST - Light-ON	Infrared	492.13 ft	150 m	-40 °C	70 °C	240 VAC	24 VAC	10 ms	NEMA 6P IEC IP67	Cable	78.74 in	2 m	Through-Beam
BANNER ENGINEERING SM2A30SRLQD	SPST	LED	492.13 ft	150 m	-40 °C	70 °C	240 VAC	24 VAC	10 ms	IP67 NEMA 6P	Connector			Through-Beam
BANNER ENGINEERING SM2A30PRLQDC	SPST - Light-ON	Infrared	492.13 ft	150 m	-40 °C	70 °C	240 VAC	24 VAC	10 ms	IP67	Connector			Through-Beam
BANNER ENGINEERING SM2A30PRLNCQDC	SPST - Dark-ON	Infrared	492.13 ft	150 m	-40 °C	70 °C	240 VAC	24 VAC	10 ms	IP67	Connector			Through-Beam

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Through-Beam Optical Sensor 492.13' (150m) SPST
