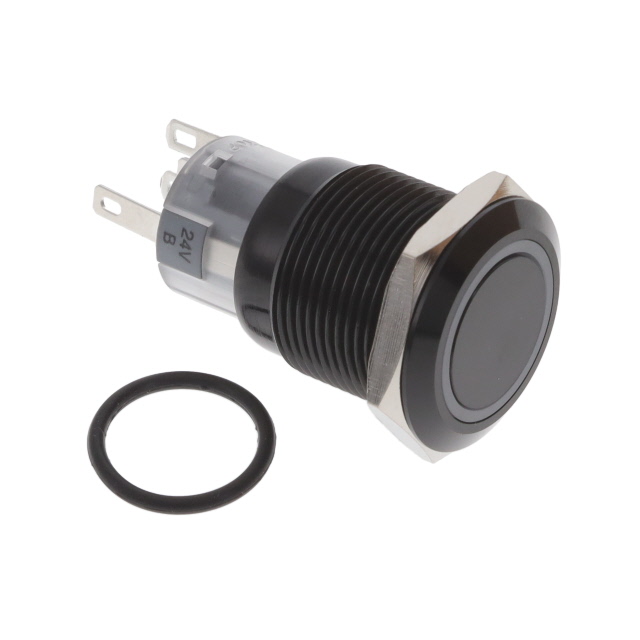

PV4F23011-345
ActiveE-Switch
SWITCH PUSHBUTTON SPDT 2A 24V
Deep-Dive with AI
Search across all available documentation for this part.
PV4F23011-345
ActiveE-Switch
SWITCH PUSHBUTTON SPDT 2A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PV4F23011-345 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Flush, Button, Round |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 2 A |
| Electrical Life | 50000 Cycles |
| Illumination Type, Color | LED, Blue |
| Illumination Voltage (Nominal) | 24 V |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [diameter] | 19 mm |
| Switch Function | On-On |
| Termination Style | 0.11 in |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2.8 mm |
| Type | Anti-Vandal, Illuminated |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 26.95 | |
| 10 | $ 23.25 | |||
| 25 | $ 21.92 | |||
| 40 | $ 21.27 | |||
| 80 | $ 20.34 | |||
| 230 | $ 18.99 | |||
| 440 | $ 18.21 | |||
Description
General part information
PV4F23011 Series
Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
