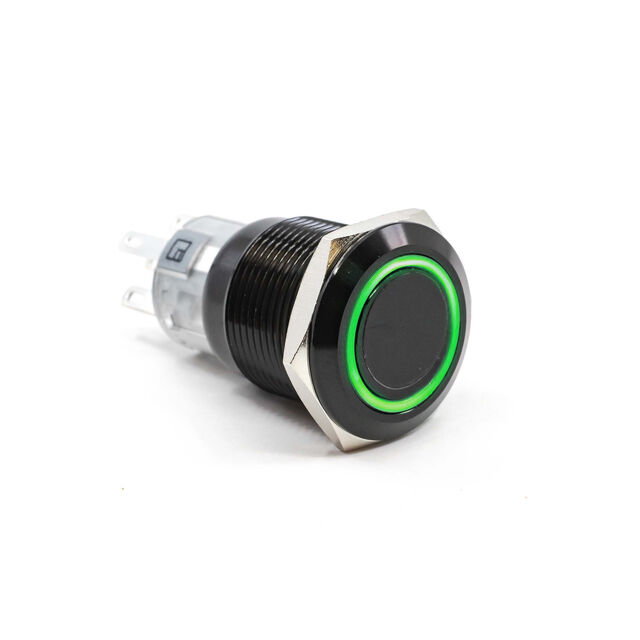

PV4F23011-334

Active

E-Switch

SWITCH PUSHBUTTON SPDT 2A 24V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PUSHBUTTON SPDT 2A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	PV4F23011-334

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	2 A
Electrical Life	50000 Cycles
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	12 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	19 mm
Switch Function	On-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Anti-Vandal, Illuminated
Voltage Rating - DC	24 V

Part	Panel Cutout Dimensions [diameter]	Illumination Type, Color	Color - Actuator/Cap	Mechanical Life	Voltage Rating - DC	Electrical Life	Mounting Type	Ingress Protection	Switch Function	Termination Style	Termination Style	Termination Style	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal)	Actuator Marking	Actuator Type	Circuit	Type
E-Switch PV4F23011-334	19 mm	Green LED	Black	1000000 Cycles	24 V	50000 Cycles	Panel Mount Front	IP65 - Dust Tight Water Resistant	On-On	0.11 in	Quick Connect Solder	2.8 mm	2 A	55 °C	-20 C	12 VDC	No Marking	Button Flush Round	SPDT	Anti-Vandal Illuminated
E-Switch PV4F23011-345	19 mm	Blue LED	Black	1000000 Cycles	24 V	50000 Cycles	Panel Mount Front	IP65 - Dust Tight Water Resistant	On-On	0.11 in	Quick Connect Solder	2.8 mm	2 A	55 °C	-20 C	24 V	No Marking	Button Flush Round	SPDT	Anti-Vandal Illuminated
E-Switch PV4F23011-3R4	19 mm	Blue Green LED Red	Black	1000000 Cycles	24 V	50000 Cycles	Panel Mount Front	IP65 - Dust Tight Water Resistant	On-On	0.11 in	Quick Connect Solder	2.8 mm	2 A	55 °C	-20 C	12 VDC	No Marking	Button Flush Round	SPDT	Anti-Vandal Illuminated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	40	$ 21.27

General part information

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front

Technical documentation and resources

No documents available
