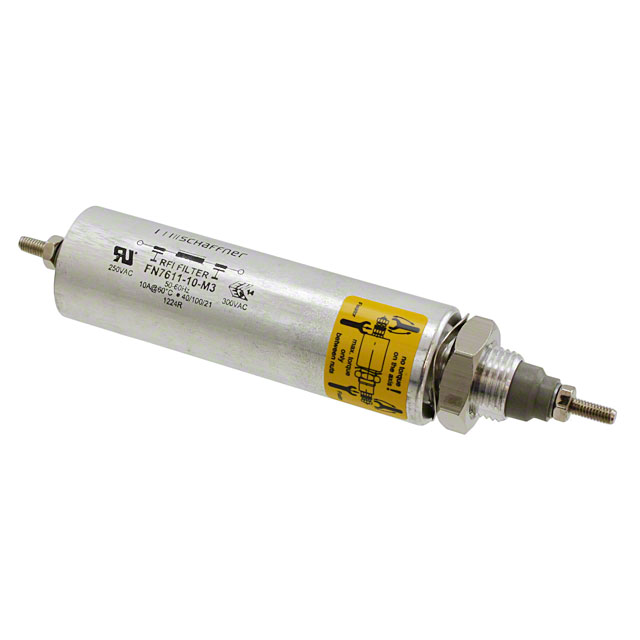

FN7611-10-M3 - FN7611-10-M3

FN7611-10-M3

Active
TE Connectivity Raychem Cable Protection

FILTER LC(PI) 70NH/0.01UH BOLT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
FN7611-10-M3 - FN7611-10-M3

FN7611-10-M3

Active
TE Connectivity Raychem Cable Protection

FILTER LC(PI) 70NH/0.01UH BOLT

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationFN7611-10-M3
ApplicationsData Lines for Mobile Devices
Current10 A
ESD ProtectionFalse
Filter Order3
Mounting TypeBolt Mount
Number of Channels1
Operating Temperature [Max]100 °C
Operating Temperature [Min]-40 °C
Package / CaseAxial - Threaded Terminals
Resistance - Channel (Ohms) [custom]0.0012 Ohms
Size / Dimension [diameter]20 mm
Size / Dimension [diameter]0.787 in
Size / Dimension [x]69 mm
Size / Dimension [x]2.717 in
TechnologyLC (Pi)
TypeLow Pass
Values70 nH, 10000 pF
Voltage - Rated1 kV
Voltage - Rated1000 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 121.89
10$ 114.33
40$ 109.28
80$ 105.92

Description

General part information

FN7611 Series

LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel L = 70nH, C = 10000pF 10 A Axial - Threaded Terminals
