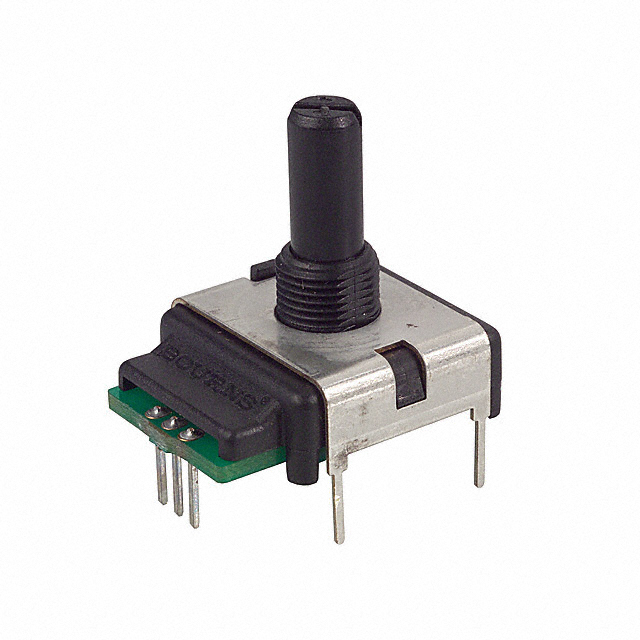

ECW1J-B24-BB0012L

Active

Bourns Inc.

ROTARY ENCODER MECHANICAL 12PPR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ECW1J-B24-BB0012L

Active

Bourns Inc.

ROTARY ENCODER MECHANICAL 12PPR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ECW1J-B24-BB0012L

Actuator Type	1/4" Dia Slotted End
Built in Switch	False
Detent	True
Encoder Type	Mechanical
Mounting Type	PCB Through Hole, Panel
Orientation	Vertical
Output Type	Quadrature (Incremental)
Pulses per Revolution	12 pulses per revolution
Rotational Life (Cycles Min)	200K
Termination Style	PC Pin

ECW1J Series

Part	Orientation	Actuator Type	Encoder Type	Termination Style	Mounting Type	Output Type	Pulses per Revolution	Rotational Life (Cycles Min)	Actuator Type
Bourns Inc. ECW1J-R19-AC0024L	Vertical	6mm Dia Slotted End	Mechanical	PC Pin	Panel PCB Through Hole	Quadrature (Incremental)	24 per Revolution	200K
Bourns Inc. ECW1J-C24-CC0024L	Vertical	Flatted End	Mechanical	Solder Lug	Panel PCB Through Hole	Quadrature (Incremental)	24 per Revolution	200K	0.25
Bourns Inc. ECW1J-C24-BC0024L	Vertical	Flatted End	Mechanical	PC Pin	Panel PCB Through Hole	Quadrature (Incremental)	24 per Revolution	200K	0.25
Bourns Inc. ECW1J-C28-EC0024L	Vertical	Flatted End	Mechanical	PC Pin	Panel PCB Through Hole	Quadrature (Incremental)	24 per Revolution	200K	0.25
Bourns Inc. ECW1J-B28-AC0024L	Vertical	1/4" Dia Slotted End	Mechanical	PC Pin	Panel PCB Through Hole	Quadrature (Incremental)	24 per Revolution	200K
Bourns Inc. ECW1J-R24-BC0024L	Vertical	6mm Dia Slotted End	Mechanical	PC Pin	Panel PCB Through Hole	Quadrature (Incremental)	24 per Revolution	200K
Bourns Inc. ECW1J-B24-BB0012L	Vertical	1/4" Dia Slotted End	Mechanical	PC Pin	Panel PCB Through Hole	Quadrature (Incremental)	12 pulses per revolution	200K
Bourns Inc. ECW1J-C24-AC0024L	Vertical	Flatted End	Mechanical	PC Pin	Panel PCB Through Hole	Quadrature (Incremental)	24 per Revolution	200K	0.25
Bourns Inc. ECW1J-R24-AC0024L	Vertical	6mm Dia Slotted End	Mechanical	PC Pin	Panel PCB Through Hole	Quadrature (Incremental)	24 per Revolution	200K
Bourns Inc. ECW1J-B24-EC0024L	Vertical	1/4" Dia Slotted End	Mechanical	PC Pin	Panel PCB Through Hole	Quadrature (Incremental)	24 per Revolution	200K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	270	$ 3.46

Description

General part information

ECW1J Series

Rotary Encoder Mechanical 12 Quadrature (Incremental) Vertical
