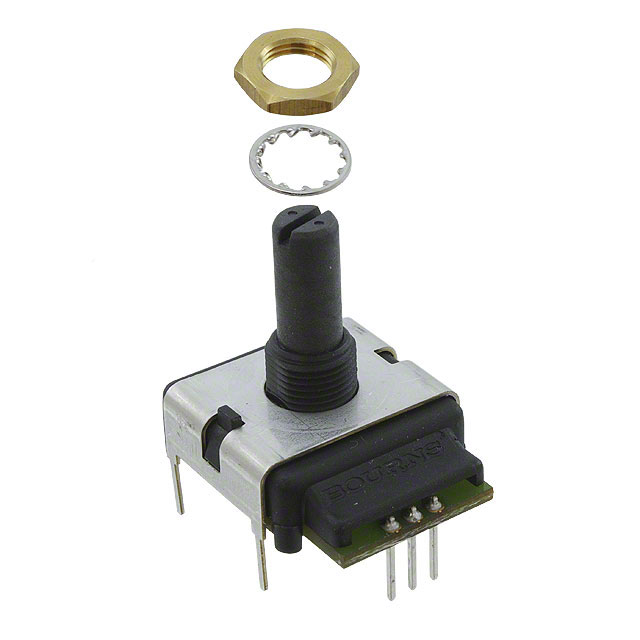

ECW1J-B24-EC0024L
ActiveBourns Inc.
ROTARY ENCODER MECHANICAL 24PPR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ECW1J-B24-EC0024L
ActiveBourns Inc.
ROTARY ENCODER MECHANICAL 24PPR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ECW1J-B24-EC0024L |
|---|---|
| Actuator Type | 1/4" Dia Slotted End |
| Built in Switch | False |
| Detent | True |
| Encoder Type | Mechanical |
| Mounting Type | PCB Through Hole, Panel |
| Orientation | Vertical |
| Output Type | Quadrature (Incremental) |
| Pulses per Revolution | 24 per Revolution |
| Rotational Life (Cycles Min) | 200K |
| Termination Style | PC Pin |
ECW1J Series
| Part | Orientation | Actuator Type | Encoder Type | Termination Style | Mounting Type | Output Type | Detent | Built in Switch | Pulses per Revolution | Rotational Life (Cycles Min) | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
Bourns Inc. | Vertical | 6mm Dia Slotted End | Mechanical | PC Pin | Panel PCB Through Hole | Quadrature (Incremental) | 24 per Revolution | 200K | |||
Bourns Inc. | Vertical | Flatted End | Mechanical | Solder Lug | Panel PCB Through Hole | Quadrature (Incremental) | 24 per Revolution | 200K | 0.25 | ||
Bourns Inc. | Vertical | Flatted End | Mechanical | PC Pin | Panel PCB Through Hole | Quadrature (Incremental) | 24 per Revolution | 200K | 0.25 | ||
Bourns Inc. | Vertical | Flatted End | Mechanical | PC Pin | Panel PCB Through Hole | Quadrature (Incremental) | 24 per Revolution | 200K | 0.25 | ||
Bourns Inc. | Vertical | 1/4" Dia Slotted End | Mechanical | PC Pin | Panel PCB Through Hole | Quadrature (Incremental) | 24 per Revolution | 200K | |||
Bourns Inc. | Vertical | 6mm Dia Slotted End | Mechanical | PC Pin | Panel PCB Through Hole | Quadrature (Incremental) | 24 per Revolution | 200K | |||
Bourns Inc. | Vertical | 1/4" Dia Slotted End | Mechanical | PC Pin | Panel PCB Through Hole | Quadrature (Incremental) | 12 pulses per revolution | 200K | |||
Bourns Inc. | Vertical | Flatted End | Mechanical | PC Pin | Panel PCB Through Hole | Quadrature (Incremental) | 24 per Revolution | 200K | 0.25 | ||
Bourns Inc. | Vertical | 6mm Dia Slotted End | Mechanical | PC Pin | Panel PCB Through Hole | Quadrature (Incremental) | 24 per Revolution | 200K | |||
Bourns Inc. | Vertical | 1/4" Dia Slotted End | Mechanical | PC Pin | Panel PCB Through Hole | Quadrature (Incremental) | 24 per Revolution | 200K |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ECW1J Series
Rotary Encoder Mechanical 24 Quadrature (Incremental) Vertical
