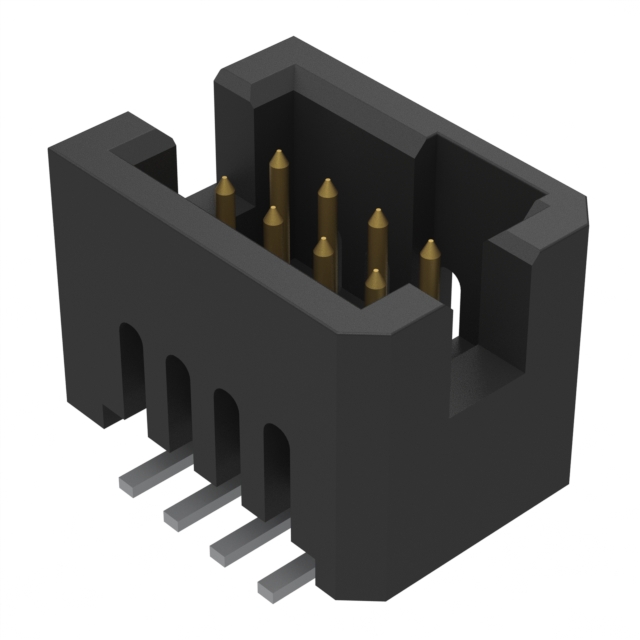

TFC-104-02-F-D-K

Active

Samtec Inc.

.050 X .050 TERMINAL STRIP

Deep-Dive with AI

Search across all available documentation for this part.

TFC-104-02-F-D-K

Active

Samtec Inc.

.050 X .050 TERMINAL STRIP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TFC-104-02-F-D-K

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Mating	3.33 mm
Contact Length - Mating	0.131 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.1 A
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	0.226 in
Insulation Height	5.74 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	275 VAC

TFC-104 Series

Part	Contact Type	Insulation Height	Insulation Height	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Current Rating (Amps)	Mounting Type	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Connector Type	Termination	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Style	Insulation Color	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Number of Rows	Voltage Rating	Contact Shape	Fastening Type	Material Flammability Rating	Contact Material	Pitch - Mating	Pitch - Mating	Features
Samtec Inc. TFC-104-01-L-D	Male Pin	5.6 mm	0.22 in	Tin	0.05 in	1.27 mm	3.1 A	Through Hole	Gold	3.33 mm	0.131 in	Header	Solder	0.078 in	1.98 mm	All	Board to Board Cable	Black	Shrouded - 4 Wall	-55 °C	125 °C	8	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	2	275 VAC	Square	Push-Pull	UL94 V-0	Phosphor Bronze	0.05 in	1.27 mm
Samtec Inc. TFC-104-01-L-D-A	Male Pin	5.6 mm	0.22 in	Tin	0.05 in	1.27 mm	3.1 A	Through Hole	Gold	3.33 mm	0.131 in	Header	Solder	0.078 in	1.98 mm	All	Board to Board Cable	Black	Shrouded - 4 Wall	-55 °C	125 °C	8	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	2	275 VAC	Square	Push-Pull	UL94 V-0	Phosphor Bronze	0.05 in	1.27 mm	Board Guide
Samtec Inc. TFC-104-01-F-D	Male Pin	5.6 mm	0.22 in	Tin	0.05 in	1.27 mm	3.1 A	Through Hole	Gold	3.33 mm	0.131 in	Header	Solder	0.078 in	1.98 mm	All	Board to Board Cable	Black	Shrouded - 4 Wall	-55 °C	125 °C	8	3 µin	0.076 µm	Liquid Crystal Polymer (LCP)	2	275 VAC	Square	Push-Pull	UL94 V-0	Phosphor Bronze	0.05 in	1.27 mm
Samtec Inc. TFC-104-02-F-D-A	Male Pin	5.74 mm	0.226 in	Tin	0.05 in	1.27 mm	3.1 A	Surface Mount	Gold	3.33 mm	0.131 in	Header	Solder			All	Board to Board Cable	Black	Shrouded - 4 Wall	-55 °C	125 °C	8	3 µin	0.076 µm	Liquid Crystal Polymer (LCP)	2	275 VAC	Square	Push-Pull	UL94 V-0	Phosphor Bronze	0.05 in	1.27 mm	Board Guide
Samtec Inc. TFC-104-02-F-D-K	Male Pin	5.74 mm	0.226 in	Tin	0.05 in	1.27 mm	3.1 A	Surface Mount	Gold	3.33 mm	0.131 in	Header	Solder			All	Board to Board Cable	Black	Shrouded - 4 Wall	-55 °C	125 °C	8	3 µin	0.076 µm	Liquid Crystal Polymer (LCP)	2	275 VAC	Square	Push-Pull	UL94 V-0	Phosphor Bronze	0.05 in	1.27 mm	Pick and Place
Samtec Inc. TFC-104-02-L-D-A	Male Pin	5.74 mm	0.226 in	Tin	0.05 in	1.27 mm	3.1 A	Surface Mount	Gold	3.33 mm	0.131 in	Header	Solder			All	Board to Board Cable	Black	Shrouded - 4 Wall	-55 °C	125 °C	8	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	2	275 VAC 350 VAC	Square	Push-Pull	UL94 V-0	Phosphor Bronze	0.05 in	1.27 mm	Board Guide
Samtec Inc. TFC-104-02-L-D-LC	Male Pin	5.74 mm	0.226 in	Tin	0.05 in	1.27 mm	3.1 A	Surface Mount	Gold	3.33 mm	0.131 in	Header	Solder			All	Board to Board Cable	Black	Shrouded - 4 Wall	-55 °C	125 °C	8	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	2	275 VAC	Square	Push-Pull	UL94 V-0	Phosphor Bronze	0.05 in	1.27 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.14

Description

General part information

TFC-104 Series

Connector Header Surface Mount 8 position 0.050" (1.27mm)
