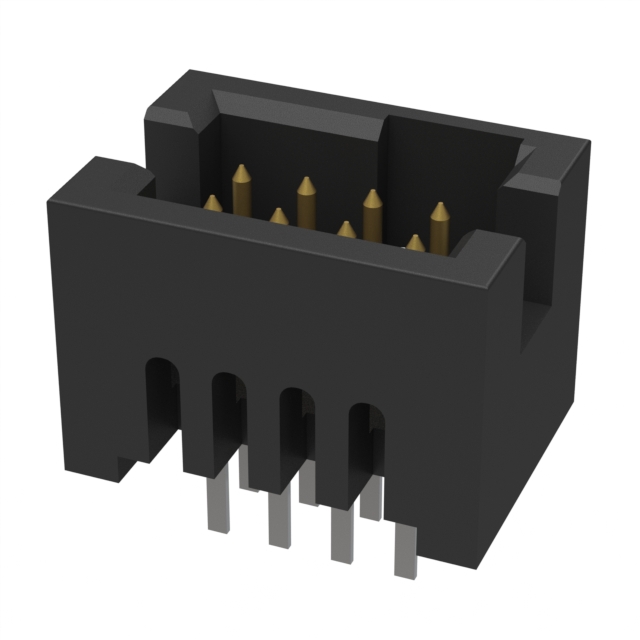

TFC-104-01-L-D

Active

Samtec Inc.

HEADERS & WIRE HOUSINGS TIGER EYE COST-EFFECTIVE TERMINAL STRIP, .050" PITCH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TFC-104-01-L-D

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	3.33 mm
Contact Length - Mating	0.131 in
Contact Length - Post [x]	0.078 in
Contact Length - Post [x]	1.98 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	275 VAC

TFC-130 Series

Headers & Wire Housings Tiger Eye Cost-Effective Terminal Strip, .050" Pitch

Part	Features	Contact Length - Mating	Contact Length - Mating	Contact Type	Number of Rows	Contact Finish - Mating	Contact Finish - Post	Contact Shape	Mounting Type	Insulation Material	Number of Positions	Current Rating (Amps)	Number of Positions Loaded	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Shrouding	Insulation Color	Termination	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Style	Voltage Rating	Contact Length - Post [x]	Contact Length - Post	Contact Length - Post [x]
Samtec Inc. TFC-106-02-L-D-P-TR	Pick and Place	3.33 mm	0.131 in	Male Pin	2	Gold	Tin	Square	Surface Mount	Liquid Crystal Polymer (LCP)	12	3.1 A	All	Phosphor Bronze	0.05 in	1.27 mm	Push-Pull	UL94 V-0	0.05 in	1.27 mm	Shrouded - 4 Wall	Black	Solder	Header	-55 °C	125 °C	10 çin	0.25 çm	0.226 in	5.74 mm	Board to Board Cable	275 VAC
Samtec Inc. TFC-130-32-L-D-A-K-TR	Board Guide Pick and Place	3.53 mm	0.139 in	Male Pin	2	Gold	Tin	Square	Surface Mount	Liquid Crystal Polymer (LCP)	60	3.1 A	All	Phosphor Bronze	0.05 in	1.27 mm	Push-Pull	UL94 V-0	0.05 in	1.27 mm	Shrouded - 4 Wall	Black	Solder	Header	-55 °C	125 °C	10 çin	0.25 çm	0.441 "	11.2 mm	Board to Board Cable	275 VAC
Samtec Inc. TFC-130-02-F-D-A-K	Board Guide Pick and Place	3.33 mm	0.131 in	Male Pin	2	Gold	Tin	Square	Surface Mount	Liquid Crystal Polymer (LCP)	60	3.1 A	All	Phosphor Bronze	0.05 in	1.27 mm	Push-Pull	UL94 V-0	0.05 in	1.27 mm	Shrouded - 4 Wall	Black	Solder	Header	-55 °C	125 °C	3 µin	0.076 µm	0.226 in	5.74 mm	Board to Board Cable	275 VAC
Samtec Inc. TFC-120-12-FM-D-A	Board Guide	3.53 mm	0.139 in	Male Pin	2	Gold	Tin	Square	Surface Mount	Liquid Crystal Polymer (LCP)	40	3.1 A	All	Phosphor Bronze	0.05 in	1.27 mm	Push-Pull	UL94 V-0	0.05 in	1.27 mm	Shrouded - 4 Wall	Black	Solder	Header	-55 °C	125 °C	3 µin	0.076 µm	0.296 in	7.52 mm	Board to Board Cable	275 VAC
Samtec Inc. TFC-130-02-F-D-A-K-TR	Board Guide Pick and Place	3.33 mm	0.131 in	Male Pin	2	Gold	Tin	Square	Surface Mount	Liquid Crystal Polymer (LCP)	60	3.1 A	All	Phosphor Bronze	0.05 in	1.27 mm	Push-Pull	UL94 V-0	0.05 in	1.27 mm	Shrouded - 4 Wall	Black	Solder	Header	-55 °C	125 °C	3 µin	0.076 µm	0.226 in	5.74 mm	Board to Board Cable	275 VAC
Samtec Inc. TFC-105-32-F-D		3.53 mm	0.139 in	Male Pin	2	Gold	Tin	Square	Surface Mount	Liquid Crystal Polymer (LCP)	10	3.1 A	All	Phosphor Bronze	0.05 in	1.27 mm	Push-Pull	UL94 V-0	0.05 in	1.27 mm	Shrouded - 4 Wall	Black	Solder	Header	-55 °C	125 °C	3 µin	0.076 µm	0.441 "	11.2 mm	Board to Board Cable	275 VAC
Samtec Inc. TFC-110-02-L-D-A-P	Board Guide Pick and Place	3.33 mm	0.131 in	Male Pin	2	Gold	Tin	Square	Surface Mount	Liquid Crystal Polymer (LCP)	20	3.1 A	All	Phosphor Bronze	0.05 in	1.27 mm	Push-Pull	UL94 V-0	0.05 in	1.27 mm	Shrouded - 4 Wall	Black	Solder	Header	-55 °C	125 °C	10 çin	0.25 çm	0.226 in	5.74 mm	Board to Board Cable	275 VAC
Samtec Inc. TFC-130-01-L-D-RA		3.61 mm	0.142 in	Male Pin	2	Gold	Tin	Square	Through Hole Right Angle	Liquid Crystal Polymer (LCP)	60	3.1 A	All	Phosphor Bronze	0.05 in	1.27 mm	Push-Pull	UL94 V-0	0.05 in	1.27 mm	Shrouded - 4 Wall	Black	Solder	Header	-55 °C	125 °C	10 çin	0.25 çm	0.22 in	5.6 mm	Board to Board Cable	275 VAC	0.075 in	1.91 mm
Samtec Inc. TFC-130-01-F-D-LC		3.33 mm	0.131 in	Male Pin	2	Gold	Tin	Square	Through Hole	Liquid Crystal Polymer (LCP)	60	3.1 A	All	Phosphor Bronze	0.05 in	1.27 mm	Push-Pull	UL94 V-0	0.05 in	1.27 mm	Shrouded - 4 Wall	Black	Solder	Header	-55 °C	125 °C	3 µin	0.076 µm	0.22 in	5.6 mm	Board to Board Cable	275 VAC	0.078 in		1.98 mm
Samtec Inc. TFC-130-22-F-D-K-TR	Pick and Place	3.53 mm	0.139 in	Male Pin	2	Gold	Tin	Square	Surface Mount	Liquid Crystal Polymer (LCP)	60	3.1 A	All	Phosphor Bronze	0.05 in	1.27 mm	Push-Pull	UL94 V-0	0.05 in	1.27 mm	Shrouded - 4 Wall	Black	Solder	Header	-55 °C	125 °C	3 µin	0.076 µm	0.366 in	9.3 mm	Board to Board Cable	275 VAC
