AL5809Q-90EV1

Active

Diodes Inc

EVAL BOARD FOR AL5809Q 90MA

Search across all available documentation for this part.

Active

Diodes Inc

EVAL BOARD FOR AL5809Q 90MA

Technical Specifications

Parameters and characteristics for this part

Part	Supplier Device Package	Type	Current - Output / Channel [custom]	Voltage - Supply (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output	Package / Case	Grade	Number of Outputs	Qualification	Mounting Type	Applications	Current - Output / Channel	Outputs and Type	Utilized IC / Part	Voltage - Input [Min]	Voltage - Input [Max]	Features	Supplied Contents
Diodes Inc AL5809-15QP1-7	PowerDI™ 123	Linear	15 mA	2.5 V	85 °C	-40 °C	60 V	POWERDI®123	Automotive	1	AEC-Q100	Surface Mount
Diodes Inc AL5809-50P1-7	PowerDI™ 123	Linear		2.5 V	125 °C	-40 °C	60 V	POWERDI®123		1		Surface Mount	Signage	50 mA
Diodes Inc AL5809-30S1-7	SOD-123	Linear		2.5 V	125 °C	-40 °C	60 V	SOD-123		1		Surface Mount	Signage	30 mA
Diodes Inc AL5809-30QP1-7	PowerDI™ 123	Linear		2.5 V	85 °C	-40 °C	60 V	POWERDI®123	Automotive	1	AEC-Q100	Surface Mount		30 mA
Diodes Inc AL5809-150QP1-7	PowerDI™ 123	Linear		2.5 V	125 °C	-40 °C	60 V	POWERDI®123	Automotive	1	AEC-Q100	Surface Mount		150 mA
Diodes Inc AL5809-30P1-7	PowerDI™ 123	Linear		2.5 V	125 °C	-40 °C	60 V	POWERDI®123		1		Surface Mount	Signage	30 mA
Diodes Inc AL5809Q-90EV1														90 mA	1 Non-Isolated Output	AL5809Q	2.5 V	60 V	Dimmable	Board(s)
Diodes Inc AL5809-15S1-7	SOD-123	Linear	15 mA	2.5 V	125 °C	-40 °C	60 V	SOD-123		1		Surface Mount	Signage
Diodes Inc AL5809-60P1-7	PowerDI™ 123	Linear		2.5 V	125 °C	-40 °C	60 V	POWERDI®123		1		Surface Mount	Signage	60 mA
Diodes Inc AL5809-15P1-7	PowerDI™ 123	Linear	15 mA	2.5 V	125 °C	-40 °C	60 V	POWERDI®123		1		Surface Mount	Signage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 61.03

General part information

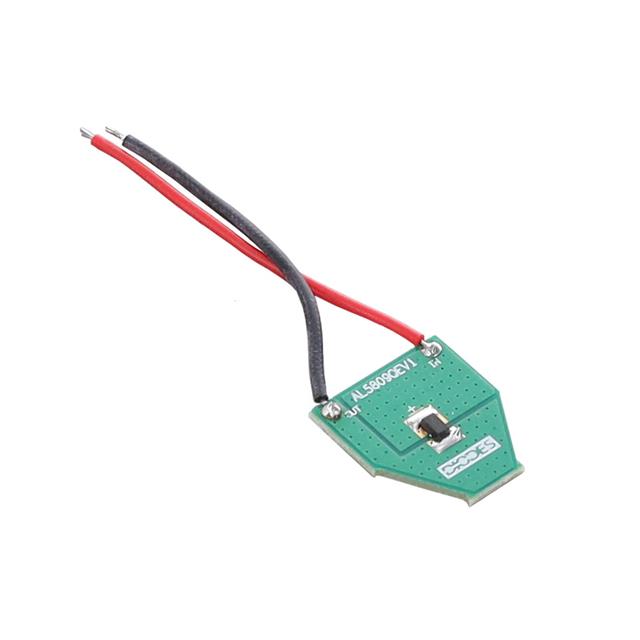

AL5809Q - 1 Non-Isolated Output Dimmable LED Driver Evaluation Board
