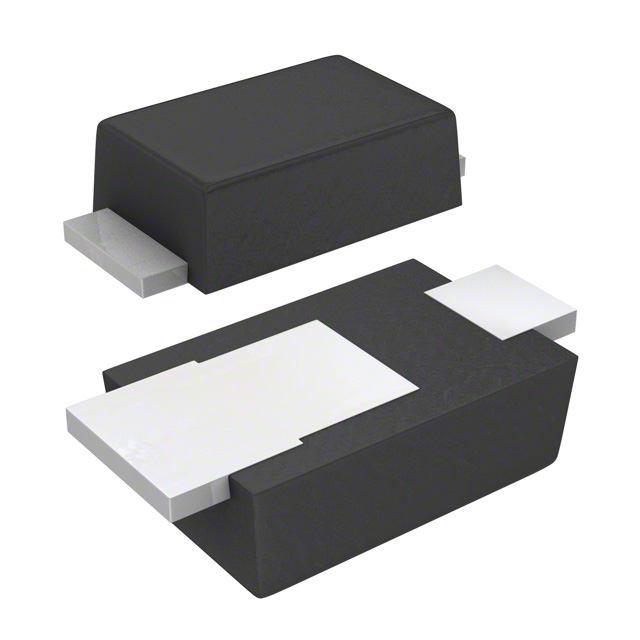

AL5809-150QP1-7 - POWERDI123

AL5809-150QP1-7

Active
Diodes Inc

60V TWO TERMINAL CONSTANT CURRENT LED DRIVER POWERDI

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDatasheet+2
AL5809-150QP1-7 - POWERDI123

AL5809-150QP1-7

Active
Diodes Inc

60V TWO TERMINAL CONSTANT CURRENT LED DRIVER POWERDI

Deep-Dive with AI

DocumentsDatasheetDatasheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationAL5809-150QP1-7
Current - Output / Channel150 mA
GradeAutomotive
Internal Switch(s)True
Mounting TypeSurface Mount
Number of Outputs1
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Package / CasePOWERDI®123
QualificationAEC-Q100
Supplier Device PackagePowerDI™ 123
TypeLinear
Voltage - Output60 V
Voltage - Supply (Min) [Min]2.5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.64
10$ 0.55
25$ 0.51
100$ 0.41
250$ 0.38
500$ 0.32
1000$ 0.25
Digi-Reel® 1$ 0.64
10$ 0.55
25$ 0.51
100$ 0.41
250$ 0.38
500$ 0.32
1000$ 0.25
Tape & Reel (TR) 3000$ 0.23
6000$ 0.21
15000$ 0.20
30000$ 0.19

Description

General part information

AL5809 Series

Robust power package up to 1.2W for POWERDI-123

-40°C to +125°C temperature range

±5% LED current tolerance over temperature
