SPHRD2L3DH00D5W4M0

Active

Samsung Semiconductor, Inc.

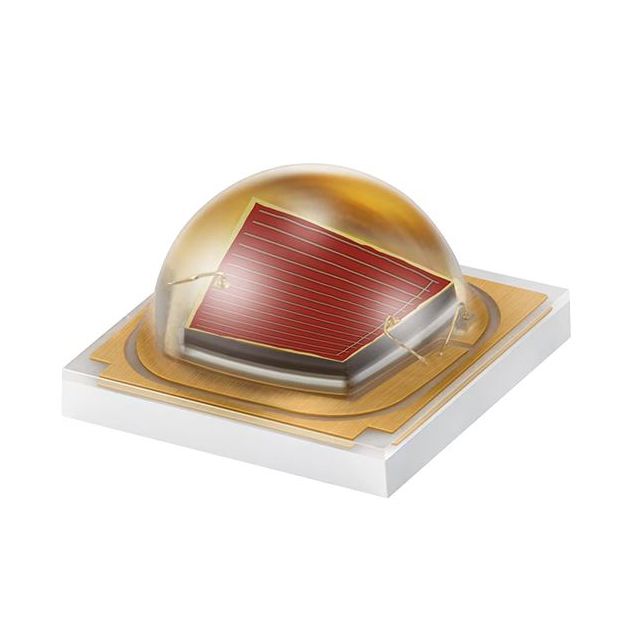

LED LH351H RED 660NM 3535

Search across all available documentation for this part.

Active

Samsung Semiconductor, Inc.

LED LH351H RED 660NM 3535

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SPHRD2L3DH00D5W4M0	SPHRD2 Series

Color	Red	Red
Current - Max [Max]	1 A	1 A
Current - Test	350 mA	350 mA
Height - Seated (Max)	-	0.081 in
Height - Seated (Max)	-	2.05 mm
Height - Seated (Max) [Max] [z]	0.086 in	0.086 in
Height - Seated (Max) [Max] [z]	2.19 mm	2.19 mm
Mounting Type	Surface Mount	Surface Mount
Package / Case	3535 Metric	3535 Metric
Package / Case	1414	1414
Size / Dimension [x]	3.5 mm	3.5 mm
Size / Dimension [x]	0.138 in	0.138 in
Size / Dimension [y]	3.5 mm	3.5 mm
Size / Dimension [y]	0.138 in	0.138 in
Supplier Device Package	3535	3535
Thermal Resistance of Package	-	3 °C/W
Viewing Angle	120 °	120 - 130 °
Voltage - Forward (Vf) (Typ)	2.2 V	1.9 - 2.2 V
Wavelength	660 nm	660 nm
Wavelength	-	720 nm
Wavelength	-	740 nm

LED LH351H RED 660NM 3535

Part	Current - Test	Supplier Device Package	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Viewing Angle	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Mounting Type	Package / Case	Package / Case	Wavelength	Color	Current - Max [Max]	Wavelength [Min]	Wavelength [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Thermal Resistance of Package [diameter]
Samsung Semiconductor, Inc. SPHRD2L3DH00D5W4M0	350 mA	3535	0.086 in	2.19 mm	120 °	3.5 mm	3.5 mm	0.138 in	0.138 in	2.2 V	Surface Mount	3535 Metric	1414	660 nm	Red	1 A
Samsung Semiconductor, Inc. SPHRD2L3DH01A844B0	350 mA	3535	0.086 in	2.19 mm	120 °	3.5 mm	3.5 mm	0.138 in	0.138 in	1.9 V	Surface Mount	3535 Metric	1414		Red	1 A	720 nm	740 nm
Samsung Semiconductor, Inc. SPHRD2L3DH20E7W41J					130 °	3.5 mm	3.5 mm	0.138 in	0.138 in	2.2 V	Surface Mount			660 nm	Red	1 A			0.081 in	2.05 mm	3 °C/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting Color LH351H Red 660nm (650nm ~ 670nm) 1414 (3535 Metric)
