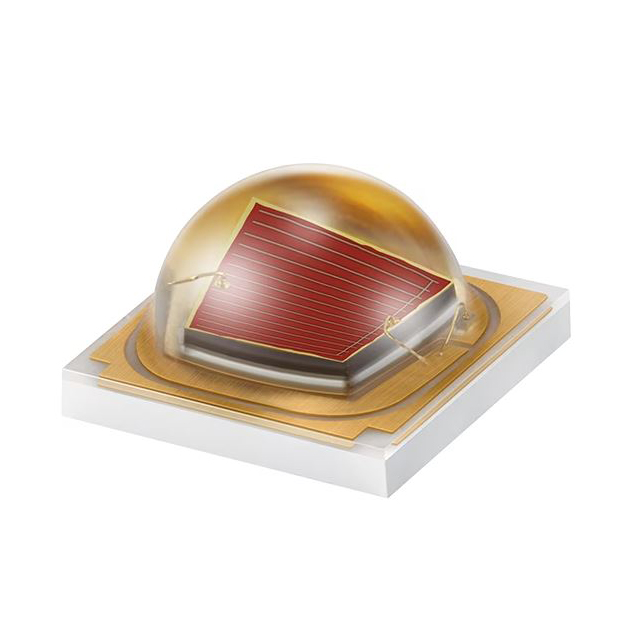

SPHRD2L3DH20E7W41J

Active

Samsung Semiconductor, Inc.

LED LH351H DEEP RED 638NM

Search across all available documentation for this part.

Active

Samsung Semiconductor, Inc.

LED LH351H DEEP RED 638NM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting Color LH351H Red 660nm (650nm ~ 670nm)

Technical documentation and resources

Specification	SPHRD2L3DH20E7W41J	SPHRD2 Series

Color	Red	Red
Current - Max [Max]	1 A	1 A
Current - Test	-	350 mA
Height - Seated (Max)	-	0.086 in
Height - Seated (Max)	-	2.19 mm
Height - Seated (Max) [Max]	0.081 in	0.081 in
Height - Seated (Max) [Max]	2.05 mm	2.05 mm
Mounting Type	Surface Mount	Surface Mount
Package / Case	-	3535 Metric
Package / Case	-	1414
Size / Dimension [x]	3.5 mm	3.5 mm
Size / Dimension [x]	0.138 in	0.138 in
Size / Dimension [y]	3.5 mm	3.5 mm
Size / Dimension [y]	0.138 in	0.138 in
Supplier Device Package	-	3535
Thermal Resistance of Package [diameter]	3 °C/W	3 °C/W
Viewing Angle	130 °	120 - 130 °
Voltage - Forward (Vf) (Typ)	2.2 V	1.9 - 2.2 V
Wavelength	660 nm	660 nm
Wavelength	-	720 nm
Wavelength	-	740 nm

Part	Current - Test	Supplier Device Package	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Viewing Angle	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Mounting Type	Package / Case	Package / Case	Wavelength	Color	Current - Max [Max]	Wavelength [Min]	Wavelength [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Thermal Resistance of Package [diameter]
Samsung Semiconductor, Inc. SPHRD2L3DH00D5W4M0	350 mA	3535	0.086 in	2.19 mm	120 °	3.5 mm	3.5 mm	0.138 in	0.138 in	2.2 V	Surface Mount	3535 Metric	1414	660 nm	Red	1 A
Samsung Semiconductor, Inc. SPHRD2L3DH01A844B0	350 mA	3535	0.086 in	2.19 mm	120 °	3.5 mm	3.5 mm	0.138 in	0.138 in	1.9 V	Surface Mount	3535 Metric	1414		Red	1 A	720 nm	740 nm
Samsung Semiconductor, Inc. SPHRD2L3DH20E7W41J					130 °	3.5 mm	3.5 mm	0.138 in	0.138 in	2.2 V	Surface Mount			660 nm	Red	1 A			0.081 in	2.05 mm	3 °C/W
