82913604A
ActiveSouriau-Sunbank by Eaton

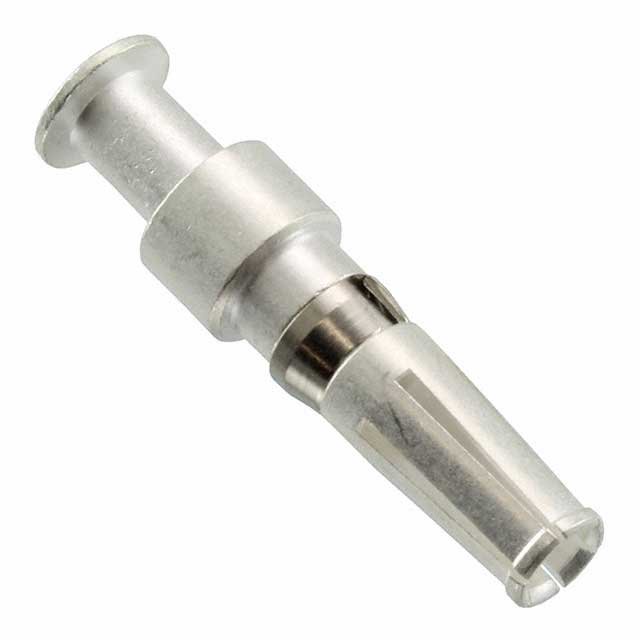

CONTACT SOCKET 12AWG CRIMP SLVR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
82913604A
ActiveSouriau-Sunbank by Eaton
CONTACT SOCKET 12AWG CRIMP SLVR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 82913604A | 829136 Series |
|---|---|---|
| Contact Finish | Silver | Silver |
| Contact Finish Thickness | 2 µm | 2 µm |
| Contact Finish Thickness | 78.7 µin | 78.7 µin |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Size | 8 | 8 |
| Contact Termination | Crimp | Crimp |
| Contact Type | Socket | Pin, Socket |
| Type | Power, Machined | Power, Machined |
| Wire Gauge or Range - AWG | 12 AWG | 8 - 16 AWG |
| Wire Gauge or Range - mm˛ | - | 10 mm˛ |
| Wire Gauge or Range - mm² | 4 mm² | 1.5 - 6 mm² |
829136 Series
CONTACT PIN 10AWG CRIMP SILVER
| Part | Wire Gauge or Range - AWG | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Contact Material | Contact Size | Type | Wire Gauge or Range - mm² | Contact Termination | Contact Finish | Wire Gauge or Range - mm˛ |
|---|---|---|---|---|---|---|---|---|---|---|---|
Souriau-Sunbank by Eaton 82913607A | 10 AWG | 2 µm | 78.7 µin | Pin | Copper Alloy | 8 | Power, Machined | 6 mm² | Crimp | Silver | |
Souriau-Sunbank by Eaton 82913604A | 12 AWG | 2 µm | 78.7 µin | Socket | Copper Alloy | 8 | Power, Machined | 4 mm² | Crimp | Silver | |
Souriau-Sunbank by Eaton 82913602A | 14 AWG | 2 µm | 78.7 µin | Socket | Copper Alloy | 8 | Power, Machined | 2.5 mm² | Crimp | Silver | |
Souriau-Sunbank by Eaton 82913600A | 16 AWG | 2 µm | 78.7 µin | Socket | Copper Alloy | 8 | Power, Machined | 1.5 mm² | Crimp | Silver | |
Souriau-Sunbank by Eaton 82913606A | 10 AWG | 2 µm | 78.7 µin | Socket | Copper Alloy | 8 | Power, Machined | 6 mm² | Crimp | Silver | |
Souriau-Sunbank by Eaton 82913601A | 16 AWG | 2 µm | 78.7 µin | Pin | Copper Alloy | 8 | Power, Machined | 1.5 mm² | Crimp | Silver | |
Souriau-Sunbank by Eaton 82913603A | 14 AWG | 2 µm | 78.7 µin | Pin | Copper Alloy | 8 | Power, Machined | 2.5 mm² | Crimp | Silver | |
Souriau-Sunbank by Eaton 82913608A | 8 AWG | 2 µm | 78.7 µin | Socket | Copper Alloy | 8 | Power, Machined | Crimp | Silver | 10 mm˛ | |
Souriau-Sunbank by Eaton 82913605A | 12 AWG | 2 µm | 78.7 µin | Pin | Copper Alloy | 8 | Power, Machined | 4 mm² | Crimp | Silver |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.35 | |
| 10 | $ 5.72 | |||
| 25 | $ 5.39 | |||
| 50 | $ 5.25 | |||
| 100 | $ 5.11 | |||
| 300 | $ 4.86 | |||
Description
General part information
829136 Series
Socket Contact 12 AWG Size 8 Crimp Silver
