621-015-360-536

Active

EDAC Inc.

STANDARD D-SUN CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

621-015-360-536

Active

EDAC Inc.

STANDARD D-SUN CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	621-015-360-536

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Board Lock, Mounting Brackets, Grounding Indents, Shielded
Flange Feature	Female Screwlock (M3), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Termination	Solder

621-015 Series

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Backset Spacing	Backset Spacing	Contact Finish	Number of Rows	Material Flammability Rating	Features	Termination	Current Rating (Amps)	Flange Feature	Shell Size, Connector Layout	Connector Style	Number of Positions	Dielectric Material	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Type	Shell Material, Finish	Color	Contact Finish Thickness
EDAC Inc. 621-015-360-550	-55 °C	125 °C	Male Pins Plug	8.08 mm	0.318 "	Gold	2	UL94 V-0	Grounding Indents Mounting Brackets Shielded	Solder	3 A	4-40	2	D-Sub	15	Polyester Thermoplastic	Copper Alloy	15 µin	0.38 µm	Board Edge Right Angle Through Hole	Signal	Nickel Plated Steel	Black
EDAC Inc. 621-015-360-536	-55 °C	125 °C	Male Pins Plug	8.08 mm	0.318 "	Gold	2	UL94 V-0	Board Lock Grounding Indents Mounting Brackets Shielded	Solder	3 A	Female Screwlock (M3) Mating Side	2	D-Sub	15	Polyester Thermoplastic	Copper Alloy	15 µin	0.38 µm	Board Edge Right Angle Through Hole	Signal	Nickel Plated Steel	Black
EDAC Inc. 621-015-668-042	-55 °C	85 °C	Male Pins Plug	8.08 mm	0.318 "	Gold	2	UL94 V-0	Board Lock Filter Grounding Indents Mounting Brackets Shielded	Solder	3 A	Housing/Shell (4-40)	2	D-Sub	15	Polyester Thermoplastic	Copper Alloy	30 Áin	0.76 Ám	Board Edge Right Angle Through Hole	Signal	Nickel Plated Steel	Black
EDAC Inc. 621-015-660-041	-55 °C	85 °C	Male Pins Plug	8.08 mm	0.318 "	Gold	2	UL94 V-0	Board Lock Grounding Indents Mounting Brackets Shielded	Solder	3 A	Housing/Shell (Unthreaded)	2	D-Sub	15	Polyester Thermoplastic	Copper Alloy	30 Áin	0.76 Ám	Board Edge Right Angle Through Hole	Signal	Nickel Plated Steel	Black
EDAC Inc. 621-015-660-056	-55 °C	85 °C	Male Pins Plug	8.08 mm	0.318 "	Gold	2	UL94 V-0	Grounding Indents Mounting Brackets Shielded	Solder	3 A	Female Screwlock (M3) Mating Side	2	D-Sub	15	Polyester Thermoplastic	Copper Alloy	30 Áin	0.76 Ám	Board Edge Right Angle Through Hole	Signal	Nickel Plated Steel	Black
EDAC Inc. 621-015-668-053	-55 °C	85 °C	Male Pins Plug	8.08 mm	0.318 "	Gold	2	UL94 V-0	Filter Grounding Indents Mounting Brackets Shielded	Solder	3 A	Female Screwlock (4-40) Mating Side	2	D-Sub	15	Polyester Thermoplastic	Copper Alloy	30 Áin	0.76 Ám	Board Edge Right Angle Through Hole	Signal	Nickel Plated Steel	Black
EDAC Inc. 621-015-360-051	-55 °C	85 °C	Male Pins Plug	8.08 mm	0.318 "	Gold	2	UL94 V-0	Grounding Indents Mounting Brackets Shielded	Solder	3 A	Housing/Shell (Unthreaded)	2	D-Sub	15	Polyester Thermoplastic	Copper Alloy	15 µin	0.38 µm	Board Edge Right Angle Through Hole	Signal	Nickel Plated Steel	Black
EDAC Inc. 621-015-368-040	-55 °C	85 °C	Male Pins Plug	8.08 mm	0.318 "	Gold	2	UL94 V-0	Board Lock Filter Grounding Indents Mounting Brackets Shielded	Solder	3 A	4-40	2	D-Sub	15	Polyester Thermoplastic	Copper Alloy	15 µin	0.38 µm	Board Edge Right Angle Through Hole	Signal	Nickel Plated Steel	Black
EDAC Inc. 621-015-660-543	-55 °C	125 °C	Male Pins Plug	8.08 mm	0.318 "	Gold	2	UL94 V-0	Board Lock Grounding Indents Mounting Brackets Shielded	Solder	3 A	Female Screwlock (4-40) Mating Side	2	D-Sub	15	Polyester Thermoplastic	Copper Alloy	30 Áin	0.76 Ám	Board Edge Right Angle Through Hole	Signal	Nickel Plated Steel	Black
EDAC Inc. 621-015-260-551	-55 °C	125 °C	Male Pins Plug	8.08 mm	0.318 "	Gold	2	UL94 V-0	Grounding Indents Mounting Brackets Shielded	Solder	3 A	Housing/Shell (Unthreaded)	2	D-Sub	15	Polyester Thermoplastic	Copper Alloy			Board Edge Right Angle Through Hole	Signal	Nickel Plated Steel	Black	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	200	$ 3.99
Newark	Each	100	$ 4.28
		250	$ 3.99
		500	$ 3.80
		1000	$ 3.61
		2500	$ 3.33

Description

General part information

621-015 Series

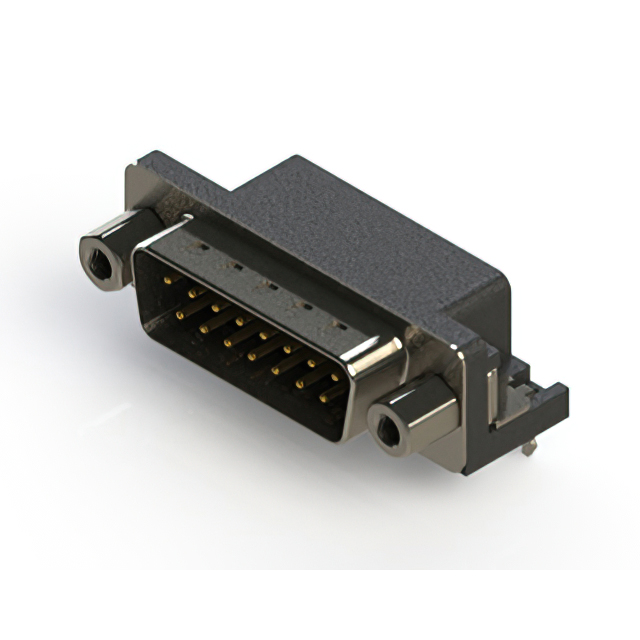

15 Position D-Sub Plug, Male Pins Connector
