TEA2016DK1008

Active

NXP USA Inc.

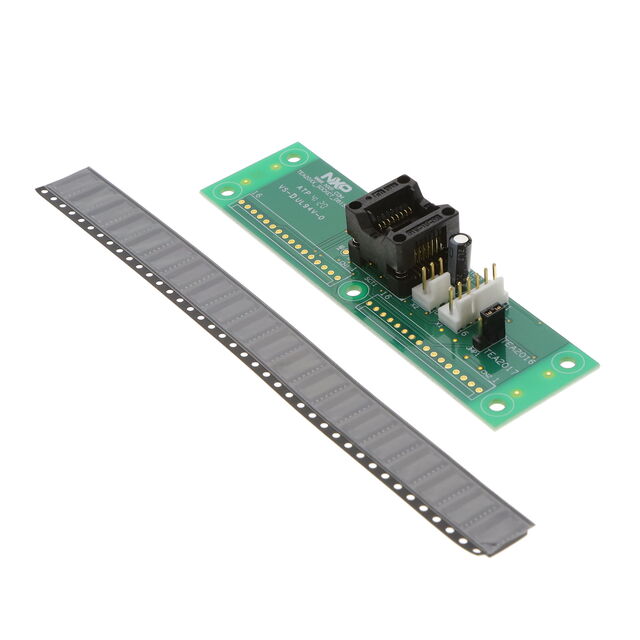

TEA20XX SOCKET DB1586 BOARD

Search across all available documentation for this part.

Active

NXP USA Inc.

TEA20XX SOCKET DB1586 BOARD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TEA2016DK1008	TEA2016 Series

Applications	-	Digital Power Controller
Contents	Accessories, Board(s)	Cable(s), Board(s), Accessories
Current - Supply	-	4.8 mA
For Use With/Related Products	-	TEA2016
Mounting Type	-	Surface Mount
Operating Temperature	-	150 °C
Operating Temperature	-	-40 °C
Package / Case	-	16-SOIC
Package / Case	-	0.154 in
Package / Case	-	3.9 mm
Supplier Device Package	-	16-SO
Type	Programmer	Programmer
Utilized IC / Part	TEA2016	TEA2016
Voltage - Supply	-	0.5 - 2.35 V
Voltage - Supply	-	2.65 - 4.5 V

TEA2016 USB-I2C INTERFACE

Part	Contents	Type	For Use With/Related Products	Applications	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Current - Supply	Package / Case	Package / Case [x]	Package / Case [y]	Operating Temperature [Max]	Operating Temperature [Min]	Utilized IC / Part
NXP USA Inc. RDK01DB1563	Board(s), Cable(s)	Programmer	TEA2016
NXP USA Inc. TEA2016AAT/2Y				Digital Power Controller	16-SO	0.5 V, 2.35 V	2.65 V, 4.5 V	Surface Mount	4.8 mA	16-SOIC	0.154 in	3.9 mm	150 °C	-40 °C
NXP USA Inc. TEA2016DK1008	Accessories, Board(s)	Programmer													TEA2016
NXP USA Inc. TEA2016AAT/1/S30Y				Digital Power Controller	16-SO	0.5 V, 2.35 V	2.65 V, 4.5 V	Surface Mount	4.8 mA	16-SOIC	0.154 in	3.9 mm	150 °C	-40 °C
NXP USA Inc. TEA2016AAT/1J				Digital Power Controller	16-SO	2.35 V	4.5 V	Surface Mount		16-SOIC	0.154 in	3.9 mm	150 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 54.39

General part information

TEA2016 - Programmer
