RDK01DB1563

Active

NXP USA Inc.

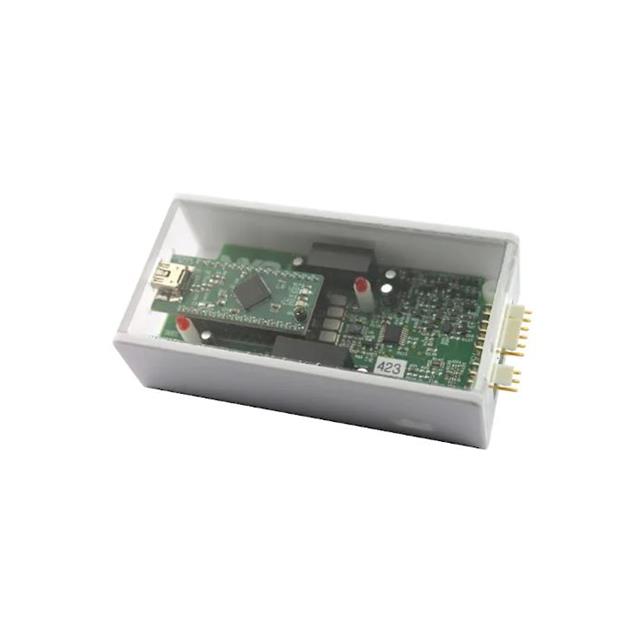

TEA2016 USB-I2C INTERFACE

Search across all available documentation for this part.

Active

NXP USA Inc.

TEA2016 USB-I2C INTERFACE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 218.75

General part information

TEA2016 - Programmer

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	RDK01DB1563	TEA2016 Series

Applications	-	Digital Power Controller
Contents	Cable(s), Board(s)	Cable(s), Board(s), Accessories
Current - Supply	-	4.8 mA
For Use With/Related Products	TEA2016	TEA2016
Mounting Type	-	Surface Mount
Operating Temperature	-	150 °C
Operating Temperature	-	-40 °C
Package / Case	-	16-SOIC
Package / Case	-	0.154 in
Package / Case	-	3.9 mm
Supplier Device Package	-	16-SO
Type	Programmer	Programmer
Utilized IC / Part	-	TEA2016
Voltage - Supply	-	0.5 - 2.35 V
Voltage - Supply	-	2.65 - 4.5 V

TEA2016 USB-I2C INTERFACE

Part	Contents	Type	For Use With/Related Products	Applications	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Current - Supply	Package / Case	Package / Case [x]	Package / Case [y]	Operating Temperature [Max]	Operating Temperature [Min]	Utilized IC / Part
NXP USA Inc. RDK01DB1563	Board(s), Cable(s)	Programmer	TEA2016
NXP USA Inc. TEA2016AAT/2Y				Digital Power Controller	16-SO	0.5 V, 2.35 V	2.65 V, 4.5 V	Surface Mount	4.8 mA	16-SOIC	0.154 in	3.9 mm	150 °C	-40 °C
NXP USA Inc. TEA2016DK1008	Accessories, Board(s)	Programmer													TEA2016
NXP USA Inc. TEA2016AAT/1/S30Y				Digital Power Controller	16-SO	0.5 V, 2.35 V	2.65 V, 4.5 V	Surface Mount	4.8 mA	16-SOIC	0.154 in	3.9 mm	150 °C	-40 °C
NXP USA Inc. TEA2016AAT/1J				Digital Power Controller	16-SO	2.35 V	4.5 V	Surface Mount		16-SOIC	0.154 in	3.9 mm	150 °C	-40 °C
