8200-4565

Active

TWIN INDUSTRIES

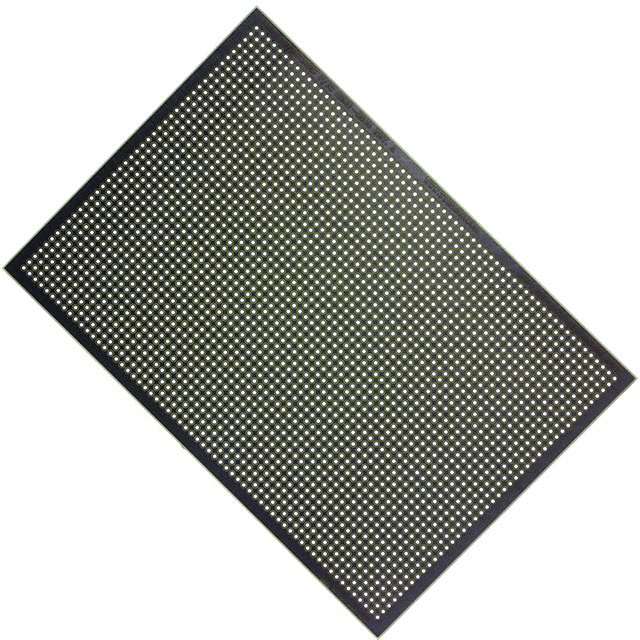

PROTOTYPE BOARD, 4.5" WIDTH X 6.5" HEIGHT, 0.037" HOLE DIAMETER, EPOXY GLASS COMPOSITE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

8200-4565

Active

TWIN INDUSTRIES

PROTOTYPE BOARD, 4.5" WIDTH X 6.5" HEIGHT, 0.037" HOLE DIAMETER, EPOXY GLASS COMPOSITE

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.67

Description

General part information

8200 Series

8200-4565 is a 8200 series protoboard. It provides a versatile solution for electronic hardware development. It made with high quality FR4 material. It featuring a 0.1"x0.1" grid of plated through hole, two plane.

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet

Specification	8200-4565	8200 Series

Board Thickness	0.062 in	0.062 in
Board Thickness	0.0625 in	0.0625 in
Board Thickness	1.57 mm	1.57 mm
Circuit Pattern	Pad Per Hole (Round)	Pad Per Hole (Round)
Hole Diameter [diameter]	0.037 in	0.037 in
Hole Diameter [diameter]	0.94 mm	0.94 mm
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Proto Board Type	Breadboard, General Purpose	Breadboard, General Purpose
Size / Dimension [x]	165.1 mm	127 - 254 mm
Size / Dimension [x]	6.5 in	5 - 10 in
Size / Dimension [y]	4.5 in	4 - 4.5 in
Size / Dimension [y]	114.3 mm	101.6 - 114.3 mm

Part	Hole Diameter [diameter]	Hole Diameter [diameter]	Circuit Pattern	Proto Board Type	Pitch [x]	Pitch [x]	Board Thickness	Board Thickness	Board Thickness	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
TWIN INDUSTRIES 8200-4565	0.037 in	0.94 mm	Pad Per Hole (Round)	Breadboard, General Purpose	2.54 mm	0.1 in	0.062 in	0.0625 in	1.57 mm	165.1 mm	4.5 in	114.3 mm	6.5 in
TWIN INDUSTRIES 8200-410	0.037 in	0.94 mm	Pad Per Hole (Round)	Breadboard, General Purpose	2.54 mm	0.1 in	0.062 in	0.0625 in	1.57 mm	254 mm	4 "	101.6 mm	10 in
TWIN INDUSTRIES 8200-45	0.037 in	0.94 mm	Pad Per Hole (Round)	Breadboard, General Purpose	2.54 mm	0.1 in	0.062 in	0.0625 in	1.57 mm	127 mm	4 "	101.6 mm	5 in
TWIN INDUSTRIES 8200-45-LF	0.037 in	0.94 mm	Pad Per Hole (Round)	Breadboard, General Purpose	2.54 mm	0.1 in	0.062 in	0.0625 in	1.57 mm	127 mm	4 "	101.6 mm	5 in
