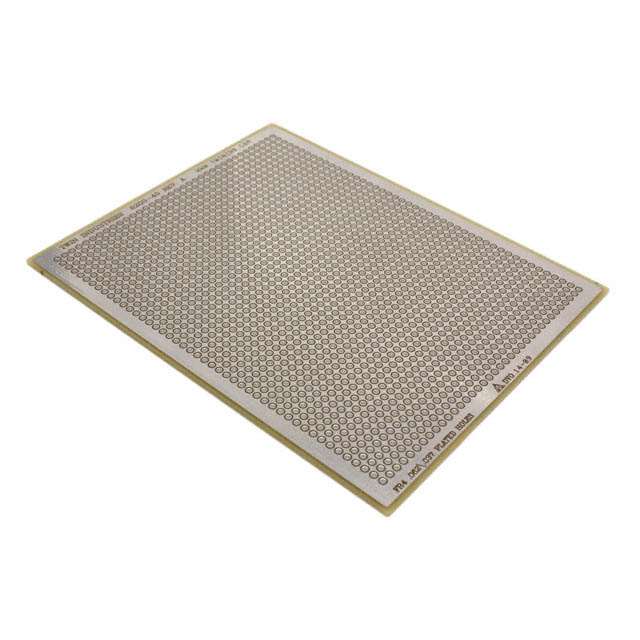

8200-45

Active

TWIN INDUSTRIES

BREADBOARD GENERAL PURPOSE

Search across all available documentation for this part.

Active

TWIN INDUSTRIES

BREADBOARD GENERAL PURPOSE

Technical Specifications

Parameters and characteristics commom to parts in this series

PROTOTYPE BOARD, 4.5" WIDTH X 6.5" HEIGHT, 0.037" HOLE DIAMETER, EPOXY GLASS COMPOSITE

Part	Hole Diameter [diameter]	Hole Diameter [diameter]	Circuit Pattern	Proto Board Type	Pitch [x]	Pitch [x]	Board Thickness	Board Thickness	Board Thickness	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
TWIN INDUSTRIES 8200-4565	0.037 in	0.94 mm	Pad Per Hole (Round)	Breadboard, General Purpose	2.54 mm	0.1 in	0.062 in	0.0625 in	1.57 mm	165.1 mm	4.5 in	114.3 mm	6.5 in
TWIN INDUSTRIES 8200-410	0.037 in	0.94 mm	Pad Per Hole (Round)	Breadboard, General Purpose	2.54 mm	0.1 in	0.062 in	0.0625 in	1.57 mm	254 mm	4 "	101.6 mm	10 in
TWIN INDUSTRIES 8200-45	0.037 in	0.94 mm	Pad Per Hole (Round)	Breadboard, General Purpose	2.54 mm	0.1 in	0.062 in	0.0625 in	1.57 mm	127 mm	4 "	101.6 mm	5 in
TWIN INDUSTRIES 8200-45-LF	0.037 in	0.94 mm	Pad Per Hole (Round)	Breadboard, General Purpose	2.54 mm	0.1 in	0.062 in	0.0625 in	1.57 mm	127 mm	4 "	101.6 mm	5 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Breadboard, General Purpose Pad Per Hole (Round) 0.100" (2.54mm)

Technical documentation and resources

No documents available
