5595S-210MMX300MM

Active

3M (TC)

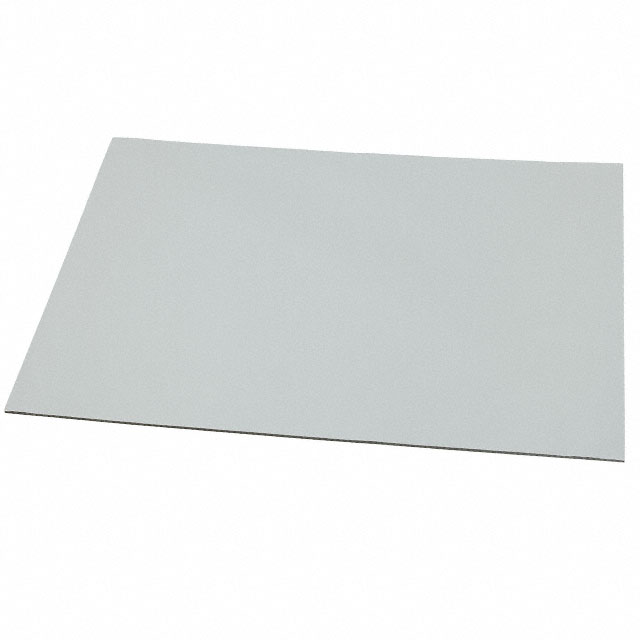

THERM PAD 300MMX210MM GRAY

Search across all available documentation for this part.

Active

3M (TC)

THERM PAD 300MMX210MM GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	5595S-210MMX300MM

Backing, Carrier	Polyethylene-Naphthalate (PEN)
Color	Gray
Outline [x]	300 mm
Outline [y]	210 mm
Shape	Rectangular
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	25 °C
Storage/Refrigeration Temperature [Max]	77 °F
Storage/Refrigeration Temperature [Min]	23 °C
Storage/Refrigeration Temperature [Min]	73.4 °F
Thermal Conductivity	1.6 W/m-K
Thickness	0.079 in
Thickness	2 mm
Type	Interface Pad, Sheet

Part	Type	Outline [x]	Outline [y]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shape	Shelf Life	Thickness	Thickness	Color	Adhesive	Thermal Conductivity	Shelf Life Start	Backing, Carrier
3M (TC) 5595 210 MM X 300 MM 1.0 MM	Interface Pad Sheet	300 mm	210 mm	25 °C	23 °C	73.4 °F	77 °F	Rectangular	24 Months	0.991 mm	0.039 in	Gray	Tacky - Both Sides	1.6 W/m-K	Date of Manufacture
3M (TC) 5595S-10	Interface Pad Sheet	300 mm	210 mm	25 °C	23 °C	73.4 °F	77 °F	Rectangular	24 Months	0.991 mm	0.039 in	Gray		1.6 W/m-K	Date of Manufacture	Polyethylene-Naphthalate (PEN)
3M (TC) 5595S-210MMX300MM	Interface Pad Sheet	300 mm	210 mm	25 °C	23 °C	73.4 °F	77 °F	Rectangular	24 Months	2 mm	0.079 in	Gray		1.6 W/m-K	Date of Manufacture	Polyethylene-Naphthalate (PEN)
3M (TC) 5595 210 MM X 300 MM 1.5 MM	Interface Pad Sheet	300 mm	210 mm	25 °C	23 °C	73.4 °F	77 °F	Rectangular	24 Months	1.5 mm	0.0591 "	Gray	Tacky - Both Sides	1.6 W/m-K	Date of Manufacture
3M (TC) 5595S	Interface Pad Sheet	300 mm	210 mm	25 °C	23 °C	73.4 °F	77 °F	Rectangular	24 Months	0.5 mm	0.0197 in	Gray		1.6 W/m-K	Date of Manufacture	Polyethylene-Naphthalate (PEN)
3M (TC) 5595 210 MM X 300 MM 2.0 MM	Interface Pad Sheet	300 mm	210 mm	25 °C	23 °C	73.4 °F	77 °F	Rectangular	24 Months	2 mm	0.079 in	Gray	Tacky - Both Sides	1.6 W/m-K	Date of Manufacture
