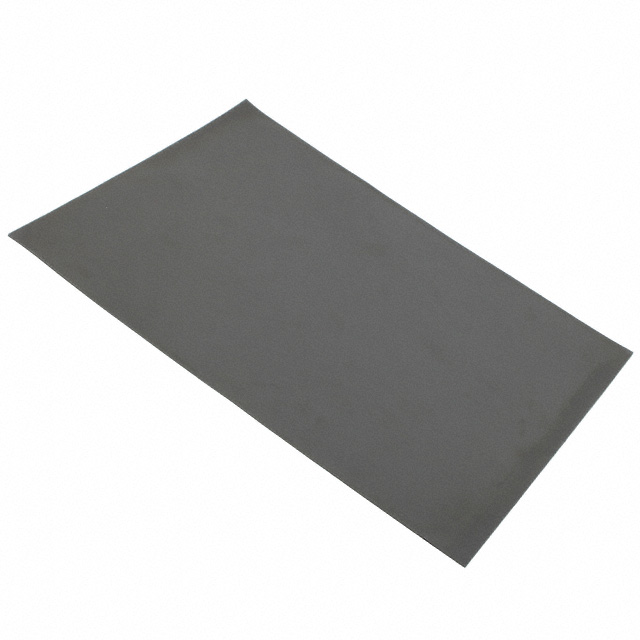

5595S-10

Active

3M (TC)

WX300902201 5595S 1.0MM THERM COND PADS 210 MM X 300 MM SILICONE

Search across all available documentation for this part.

Active

3M (TC)

WX300902201 5595S 1.0MM THERM COND PADS 210 MM X 300 MM SILICONE

Technical Specifications

Parameters and characteristics for this part

Specification	5595S-10

Backing, Carrier	Polyethylene-Naphthalate (PEN)
Color	Gray
Outline [x]	300 mm
Outline [y]	210 mm
Shape	Rectangular
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	25 °C
Storage/Refrigeration Temperature [Max]	77 °F
Storage/Refrigeration Temperature [Min]	23 °C
Storage/Refrigeration Temperature [Min]	73.4 °F
Thermal Conductivity	1.6 W/m-K
Thickness	0.991 mm
Thickness	0.039 in
Type	Interface Pad, Sheet

Part	Type	Outline [x]	Outline [y]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shape	Shelf Life	Thickness	Thickness	Color	Adhesive	Thermal Conductivity	Shelf Life Start	Backing, Carrier
3M (TC) 5595 210 MM X 300 MM 1.0 MM	Interface Pad Sheet	300 mm	210 mm	25 °C	23 °C	73.4 °F	77 °F	Rectangular	24 Months	0.991 mm	0.039 in	Gray	Tacky - Both Sides	1.6 W/m-K	Date of Manufacture
3M (TC) 5595S-10	Interface Pad Sheet	300 mm	210 mm	25 °C	23 °C	73.4 °F	77 °F	Rectangular	24 Months	0.991 mm	0.039 in	Gray		1.6 W/m-K	Date of Manufacture	Polyethylene-Naphthalate (PEN)
3M (TC) 5595S-210MMX300MM	Interface Pad Sheet	300 mm	210 mm	25 °C	23 °C	73.4 °F	77 °F	Rectangular	24 Months	2 mm	0.079 in	Gray		1.6 W/m-K	Date of Manufacture	Polyethylene-Naphthalate (PEN)
3M (TC) 5595 210 MM X 300 MM 1.5 MM	Interface Pad Sheet	300 mm	210 mm	25 °C	23 °C	73.4 °F	77 °F	Rectangular	24 Months	1.5 mm	0.0591 "	Gray	Tacky - Both Sides	1.6 W/m-K	Date of Manufacture
3M (TC) 5595S	Interface Pad Sheet	300 mm	210 mm	25 °C	23 °C	73.4 °F	77 °F	Rectangular	24 Months	0.5 mm	0.0197 in	Gray		1.6 W/m-K	Date of Manufacture	Polyethylene-Naphthalate (PEN)
3M (TC) 5595 210 MM X 300 MM 2.0 MM	Interface Pad Sheet	300 mm	210 mm	25 °C	23 °C	73.4 °F	77 °F	Rectangular	24 Months	2 mm	0.079 in	Gray	Tacky - Both Sides	1.6 W/m-K	Date of Manufacture
