317060016

Active

Seeed Technology Co., Ltd

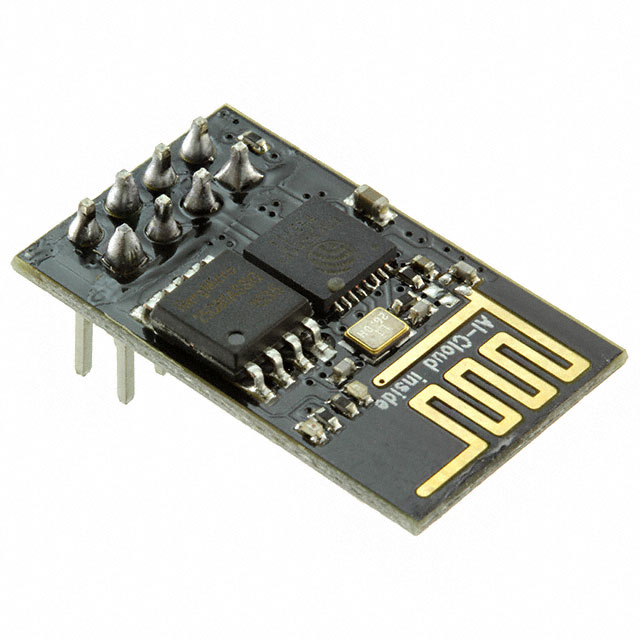

RF TXRX MOD WIFI THTHROUGH HOLE

Search across all available documentation for this part.

Active

Seeed Technology Co., Ltd

RF TXRX MOD WIFI THTHROUGH HOLE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.95

General part information

WiFi 802.11b/g/n Transceiver Module 2.4GHz ~ 2.48GHz Integrated, Trace Through Hole

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	317060016	317060 Series

Antenna Type	Integrated, Trace	Integrated, Trace, Integrated, Chip + I-PEX
Current - Receiving	62 mA	12 - 62 mA
Current - Transmitting	215 mA	70 - 215 mA
Data Rate	72.2 Mbps	54 - 72.2 Mbps
Frequency	-	2.4 GHz
Frequency [Max]	2.48 GHz	2.48 GHz
Frequency [Min]	2.4 GHz	2.4 GHz
Memory Size	1 MB	1 - 16 MB
Modulation	-	OFDM, CCK
Mounting Type	Through Hole	Surface Mount, Through Hole
Operating Temperature	-	-10 °C
Operating Temperature	-	158 °F
Operating Temperature [Max]	100 °C	85 - 125 °C
Operating Temperature [Min]	-20 C	-40 - -20 °C
Package / Case	Module	Module, 16-SMD Module
Power - Output	15 dBm	15 dBm
Protocol	802.11b/g/n	802.11b/g/n
RF Family/Standard	WiFi	WiFi
Sensitivity	-98 dBm	-98 - -93 dBm
Serial Interfaces	UART	GPIO, I2C, PWM, SPI, UART, ADC
Utilized IC / Part	ESP8266	MT3620AN, ESP8266, MT7681
Voltage - Supply	3.3 V	3.3 V

RF TXRX MOD WIFI TH SMD

Part	RF Family/Standard	Memory Size	Modulation	Serial Interfaces	Package / Case	Antenna Type	Protocol	Utilized IC / Part	Mounting Type	Data Rate	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply	Frequency	Sensitivity	Current - Transmitting	Current - Receiving	Power - Output	Frequency [Min]	Frequency [Max]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]
Seeed Technology Co., Ltd 317060362	WiFi	5 MB, 16 MB	CCK, OFDM	ADC, GPIO, I2C, PWM, SPI, UART	Module	Integrated, Trace	802.11b/g/n	MT3620AN	Surface Mount	72.2 Mbps	85 °C	-40 °C	3.3 V	2.4 GHz
Seeed Technology Co., Ltd 317060015	WiFi			UART	16-SMD Module	Integrated, Trace	802.11b/g/n	ESP8266	Surface Mount	54 Mbps	125 °C	-40 °C	3.3 V	2.4 GHz	-93 dBm	70 mA	12 mA
Seeed Technology Co., Ltd 317060016	WiFi	1 MB		UART	Module	Integrated, Trace	802.11b/g/n	ESP8266	Through Hole	72.2 Mbps	100 °C	-20 C	3.3 V		-98 dBm	215 mA	62 mA	15 dBm	2.4 GHz	2.48 GHz
Seeed Technology Co., Ltd 317060009	WiFi			UART	Module	Integrated, Chip + I-PEX	802.11b/g/n	MT7681	Surface Mount					2.4 GHz							-10 °C	158 °F
