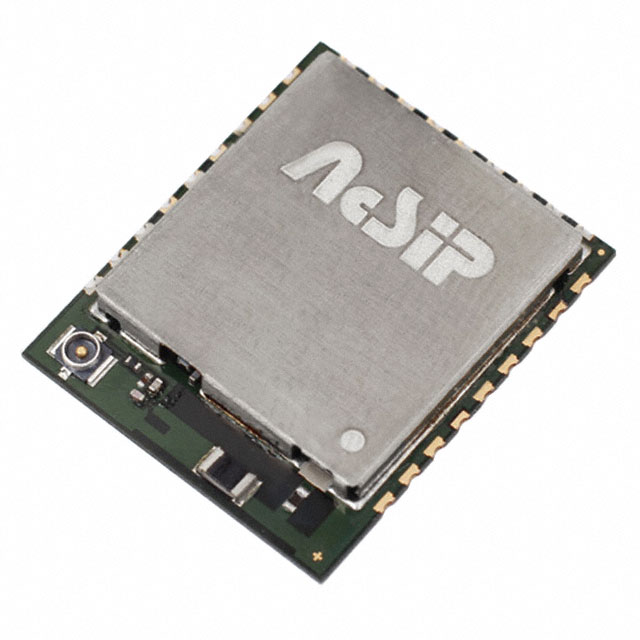

RF TXRX MOD WIFI CHIP + IPEX SMD

Search across all available documentation for this part.

Obsolete

Seeed Technology Co., Ltd

RF TXRX MOD WIFI CHIP + IPEX SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	317060009	317060 Series

Antenna Type	Integrated, Chip + I-PEX	Integrated, Trace, Integrated, Chip + I-PEX
Current - Receiving	-	12 - 62 mA
Current - Transmitting	-	70 - 215 mA
Data Rate	-	54 - 72.2 Mbps
Frequency	2.4 GHz	2.4 GHz
Frequency	-	2.4 GHz
Frequency	-	2.48 GHz
Memory Size	-	1 - 16 MB
Modulation	-	OFDM, CCK
Mounting Type	Surface Mount	Surface Mount, Through Hole
Operating Temperature	-	85 - 125 °C
Operating Temperature	-	-40 - -20 °C
Operating Temperature [Max] [custom]	158 °F	158 °F
Operating Temperature [Min] [custom]	-10 °C	-10 °C
Package / Case	Module	Module, 16-SMD Module
Power - Output	-	15 dBm
Protocol	802.11b/g/n	802.11b/g/n
RF Family/Standard	WiFi	WiFi
Sensitivity	-	-98 - -93 dBm
Serial Interfaces	UART	GPIO, I2C, PWM, SPI, UART, ADC
Utilized IC / Part	MT7681	MT3620AN, ESP8266, MT7681
Voltage - Supply	-	3.3 V

RF TXRX MOD WIFI TH SMD

Part	RF Family/Standard	Memory Size	Modulation	Serial Interfaces	Package / Case	Antenna Type	Protocol	Utilized IC / Part	Mounting Type	Data Rate	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply	Frequency	Sensitivity	Current - Transmitting	Current - Receiving	Power - Output	Frequency [Min]	Frequency [Max]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]
Seeed Technology Co., Ltd 317060362	WiFi	5 MB, 16 MB	CCK, OFDM	ADC, GPIO, I2C, PWM, SPI, UART	Module	Integrated, Trace	802.11b/g/n	MT3620AN	Surface Mount	72.2 Mbps	85 °C	-40 °C	3.3 V	2.4 GHz
Seeed Technology Co., Ltd 317060015	WiFi			UART	16-SMD Module	Integrated, Trace	802.11b/g/n	ESP8266	Surface Mount	54 Mbps	125 °C	-40 °C	3.3 V	2.4 GHz	-93 dBm	70 mA	12 mA
Seeed Technology Co., Ltd 317060016	WiFi	1 MB		UART	Module	Integrated, Trace	802.11b/g/n	ESP8266	Through Hole	72.2 Mbps	100 °C	-20 C	3.3 V		-98 dBm	215 mA	62 mA	15 dBm	2.4 GHz	2.48 GHz
Seeed Technology Co., Ltd 317060009	WiFi			UART	Module	Integrated, Chip + I-PEX	802.11b/g/n	MT7681	Surface Mount					2.4 GHz							-10 °C	158 °F

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

WiFi 802.11b/g/n Transceiver Module 2.4GHz Integrated, Chip + I-PEX Surface Mount

Technical documentation and resources

No documents available
