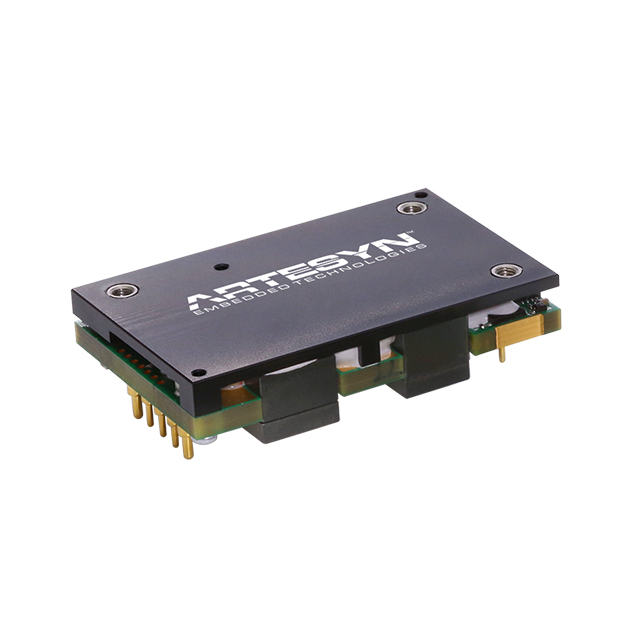

ADQ500-48S12-6L

Obsolete

ARTESYN / Advanced Energy

DC DC CONVERTER 12V 500W

Search across all available documentation for this part.

Obsolete

ARTESYN / Advanced Energy

DC DC CONVERTER 12V 500W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 12V 500W

Part	Applications	Power (Watts)	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Number of Outputs	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Current - Output (Max) [Max]	Voltage - Isolation	Type	Features	Package / Case
ARTESYN / Advanced Energy ADQ500-48S12B-6LI	ITE (Commercial)	500 W	12 V	36.8 mm	2.1 in	0.52 "	13.3 mm	53.3 mm	1.45 in	75 V	36 V	1	Through Hole	85 °C	-40 °C	94.5 %	42 A	1.5 kV	Isolated Module	OCP, OTP, OVP, Remote On/Off, UVLO	15-DIP Module, 1/4 Brick
ARTESYN / Advanced Energy ADQ500-48S12-6L	ITE (Commercial)	500 W	12 V							75 V	36 V	1	Through Hole	85 °C	-40 °C	94.5 %	42 A	1.5 kV	Isolated Module	OCP, OTP, OVP, Remote On/Off, UVLO	15-DIP Module, 1/4 Brick
ARTESYN / Advanced Energy ADQ500-48S12-6LI	ITE (Commercial)	500 W	12 V							75 V	36 V	1	Through Hole	85 °C	-40 °C	94.5 %	42 A	1.5 kV	Isolated Module	OCP, OTP, OVP, Remote On/Off, UVLO	15-DIP Module, 1/4 Brick

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 12V 42A 36V - 75V Input
