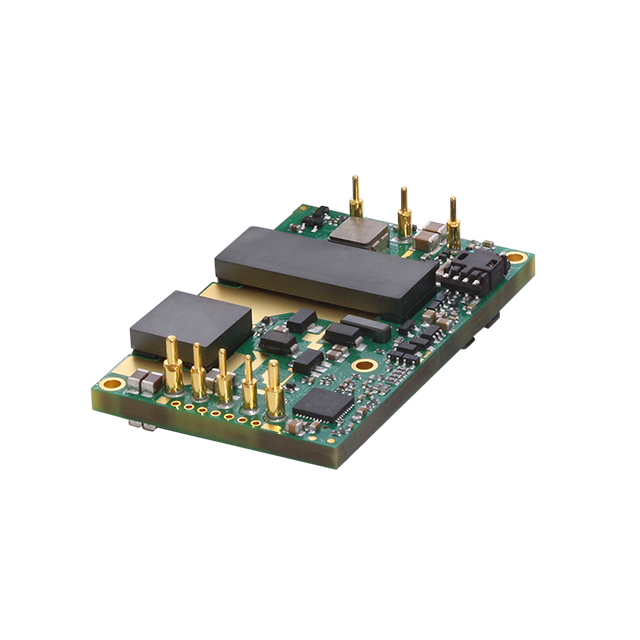

ADQ500-48S12B-6LI

Obsolete

ARTESYN / Advanced Energy

DC DC CONVERTER 12V 500W

Search across all available documentation for this part.

Obsolete

ARTESYN / Advanced Energy

DC DC CONVERTER 12V 500W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 12V 42A 36V - 75V Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 12V 500W

Part	Applications	Power (Watts)	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Number of Outputs	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Current - Output (Max) [Max]	Voltage - Isolation	Type	Features	Package / Case
ARTESYN / Advanced Energy ADQ500-48S12B-6LI	ITE (Commercial)	500 W	12 V	36.8 mm	2.1 in	0.52 "	13.3 mm	53.3 mm	1.45 in	75 V	36 V	1	Through Hole	85 °C	-40 °C	94.5 %	42 A	1.5 kV	Isolated Module	OCP, OTP, OVP, Remote On/Off, UVLO	15-DIP Module, 1/4 Brick
ARTESYN / Advanced Energy ADQ500-48S12-6L	ITE (Commercial)	500 W	12 V							75 V	36 V	1	Through Hole	85 °C	-40 °C	94.5 %	42 A	1.5 kV	Isolated Module	OCP, OTP, OVP, Remote On/Off, UVLO	15-DIP Module, 1/4 Brick
ARTESYN / Advanced Energy ADQ500-48S12-6LI	ITE (Commercial)	500 W	12 V							75 V	36 V	1	Through Hole	85 °C	-40 °C	94.5 %	42 A	1.5 kV	Isolated Module	OCP, OTP, OVP, Remote On/Off, UVLO	15-DIP Module, 1/4 Brick
