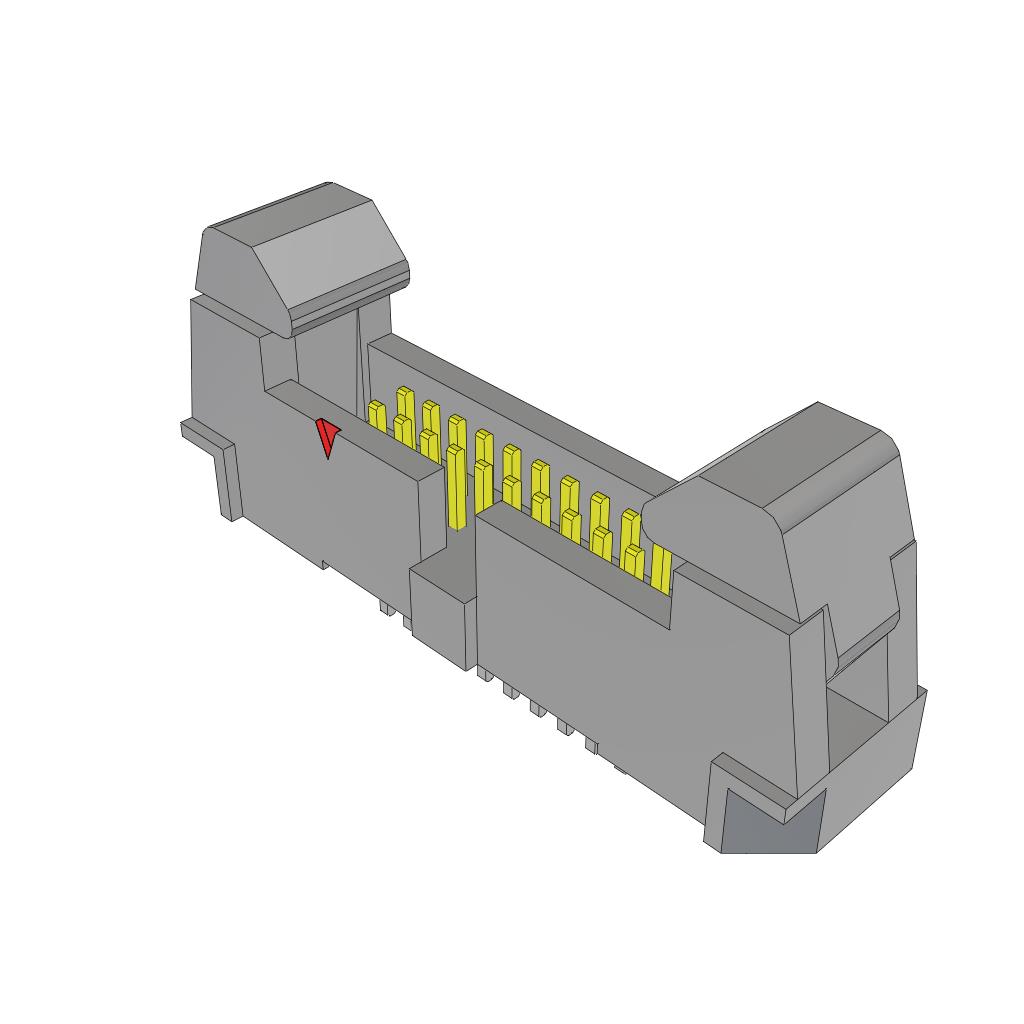

EHF-110-01-SM-D

Active

Samtec Inc.

HEADERS & WIRE HOUSINGS .050" SHROUDED IDC HEADER WITH EJECTORS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

EHF-110-01-SM-D

Active

Samtec Inc.

HEADERS & WIRE HOUSINGS .050" SHROUDED IDC HEADER WITH EJECTORS

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EHF-110-01-SM-D

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Length - Post	0.107 "
Contact Length - Post	2.71 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.75 A
Fastening Type	Latch Lock/Eject Hooks
Features	Keying Slot
Insulation Color	Black
Insulation Height	8.25 mm
Insulation Height	0.325 in
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.35 in
Overall Contact Length	8.89 mm
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

EHF-113 Series

Headers & Wire Housings .050" Shrouded IDC Header with Ejectors

Part	Number of Rows	Shrouding	Style	Contact Material	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Connector Type	Insulation Color	Fastening Type	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Type	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Number of Positions	Mounting Type	Contact Finish - Mating	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Number of Positions Loaded
Samtec Inc. EHF-113-01-F-D-SM-LC-P	2	Shrouded - 4 Wall	Board to Cable/Wire	Phosphor Bronze	8.25 mm	0.325 in	3.05 mm	0.12 in	Square	0.05 in	1.27 mm	3 µin	0.076 µm	Solder	Header	Black	Latch Lock/Eject Hooks	All	-55 °C	125 °C	1.75 A	Male Pin	Tin	0.05 in	1.27 mm	26	Surface Mount	Gold	Board Lock Keying Slot Pick and Place
Samtec Inc. EHF-113-01-S-D-SM-K-TR	2	Shrouded - 4 Wall	Board to Cable/Wire	Phosphor Bronze	8.25 mm	0.325 in	3.05 mm	0.12 in	Square	0.05 in	1.27 mm	30 Áin	0.76 Ám	Solder	Header	Black	Latch Lock/Eject Hooks	All	-55 °C	125 °C	1.75 A	Male Pin	Tin	0.05 in	1.27 mm	26	Surface Mount	Gold	Keying Slot Pick and Place
Samtec Inc. EHF-113-01-S-D-SM-LC-K	2	Shrouded - 4 Wall	Board to Cable/Wire	Phosphor Bronze	8.25 mm	0.325 in	3.05 mm	0.12 in	Square	0.05 in	1.27 mm	30 Áin	0.76 Ám	Solder	Header	Black	Latch Lock/Eject Hooks	All	-55 °C	125 °C	1.75 A	Male Pin	Tin	0.05 in	1.27 mm	26	Surface Mount	Gold	Board Lock Keying Slot Pick and Place
Samtec Inc. EHF-113-01-H-D-SM-LC	2	Shrouded - 4 Wall	Board to Cable/Wire	Phosphor Bronze	8.25 mm	0.325 in	3.05 mm	0.12 in	Square	0.05 in	1.27 mm	30 Áin	0.76 Ám	Solder	Header	Black	Latch Lock/Eject Hooks	All	-55 °C	125 °C	1.75 A	Male Pin	Gold	0.05 in	1.27 mm	26	Surface Mount	Gold	Board Lock Keying Slot	3 µin	0.076 µm
Samtec Inc. EHF-113-01-LM-D-SM-P	2	Shrouded - 4 Wall	Board to Cable/Wire	Phosphor Bronze	8.25 mm	0.325 in	3.05 mm	0.12 in	Square	0.05 in	1.27 mm	10 çin	0.25 çm	Solder	Header	Black	Latch Lock/Eject Hooks	All	-55 °C	125 °C	1.75 A	Male Pin	Tin	0.05 in	1.27 mm	26	Surface Mount	Gold	Keying Slot Pick and Place
Samtec Inc. EHF-113-01-H-D-RA	2	Shrouded - 4 Wall	Board to Cable/Wire	Phosphor Bronze			3.05 mm	0.12 in	Square	0.05 in	1.27 mm	30 Áin	0.76 Ám	Solder	Header	Black	Latch Lock/Eject Hooks	All	-55 °C	125 °C	1.75 A	Male Pin	Gold	0.05 in	1.27 mm	26	Through Hole Right Angle	Gold	Keying Slot	3 µin	0.076 µm	0.09 "	2.29 mm
Samtec Inc. EHF-113-01-L-D-SM-P	2	Shrouded - 4 Wall	Board to Cable/Wire	Phosphor Bronze	8.25 mm	0.325 in	3.05 mm	0.12 in	Square	0.05 in	1.27 mm	10 çin	0.25 çm	Solder	Header	Black	Latch Lock/Eject Hooks	All	-55 °C	125 °C	1.75 A	Male Pin	Tin	0.05 in	1.27 mm	26	Surface Mount	Gold	Keying Slot Pick and Place
Samtec Inc. EHF-113-01-L-D-09	2	Shrouded - 4 Wall	Board to Cable/Wire	Phosphor Bronze	8.25 mm	0.325 in	3.05 mm	0.12 in	Square	0.05 in	1.27 mm	10 çin	0.25 çm	Solder	Header	Black	Latch Lock/Eject Hooks		-55 °C	125 °C	1.75 A	Male Pin	Tin	0.05 in	1.27 mm	26	Through Hole	Gold	Keying Slot			0.107 "	2.71 mm	0.35 in	8.89 mm	25
Samtec Inc. EHF-113-01-L-D-SM-LC-07	2	Shrouded - 4 Wall	Board to Cable/Wire	Phosphor Bronze	8.25 mm	0.325 in	3.05 mm	0.12 in	Square	0.05 in	1.27 mm	10 çin	0.25 çm	Solder	Header	Black	Latch Lock/Eject Hooks		-55 °C	125 °C	1.75 A	Male Pin	Tin	0.05 in	1.27 mm	26	Surface Mount	Gold	Board Lock Keying Slot							25
Samtec Inc. EHF-110-01-SM-D	2	Shrouded - 4 Wall	Board to Cable/Wire	Phosphor Bronze	8.25 mm	0.325 in	3.05 mm	0.12 in	Square	0.05 in	1.27 mm	30 Áin	0.76 Ám	Solder	Header	Black	Latch Lock/Eject Hooks	All	-55 °C	125 °C	1.75 A	Male Pin	Tin	0.05 in	1.27 mm	20	Through Hole	Gold	Keying Slot			0.107 "	2.71 mm	0.35 in	8.89 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	20	$ 8.09
Sager	N/A	1	$ 6.22
		25	$ 5.63
		50	$ 5.23
		100	$ 4.70
		500	$ 4.14
		1000	$ 3.61
		2500	$ 2.79
		5000	$ 2.19
