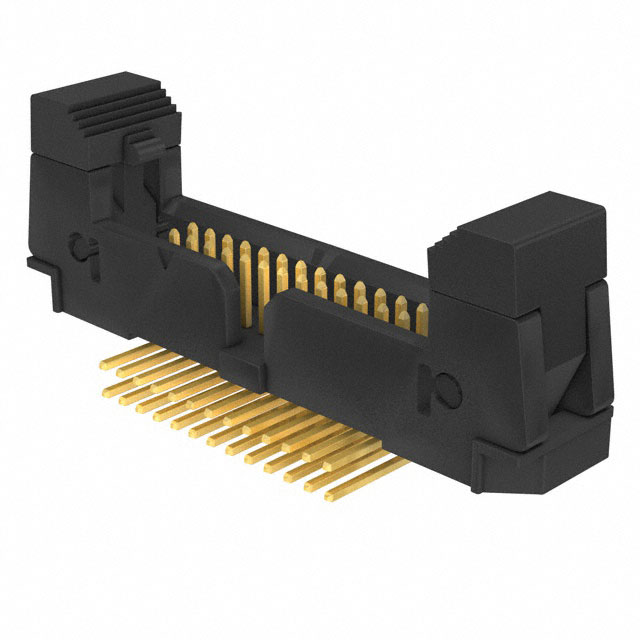

EHF-113-01-H-D-RA

Active

Samtec Inc.

CONN HEADER R/A 26POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

EHF-113-01-H-D-RA

Active

Samtec Inc.

CONN HEADER R/A 26POS 1.27MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EHF-113-01-H-D-RA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.75 A
Fastening Type	Latch Lock/Eject Hooks
Features	Keying Slot
Insulation Color	Black
Mounting Type	Through Hole, Right Angle
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

EHF-113 Series

Headers & Wire Housings .050" Shrouded IDC Header with Ejectors

Part	Number of Rows	Shrouding	Style	Contact Material	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Connector Type	Insulation Color	Fastening Type	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Type	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Number of Positions	Mounting Type	Contact Finish - Mating	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Number of Positions Loaded
Samtec Inc. EHF-113-01-F-D-SM-LC-P	2	Shrouded - 4 Wall	Board to Cable/Wire	Phosphor Bronze	8.25 mm	0.325 in	3.05 mm	0.12 in	Square	0.05 in	1.27 mm	3 µin	0.076 µm	Solder	Header	Black	Latch Lock/Eject Hooks	All	-55 °C	125 °C	1.75 A	Male Pin	Tin	0.05 in	1.27 mm	26	Surface Mount	Gold	Board Lock Keying Slot Pick and Place
Samtec Inc. EHF-113-01-S-D-SM-K-TR	2	Shrouded - 4 Wall	Board to Cable/Wire	Phosphor Bronze	8.25 mm	0.325 in	3.05 mm	0.12 in	Square	0.05 in	1.27 mm	30 Áin	0.76 Ám	Solder	Header	Black	Latch Lock/Eject Hooks	All	-55 °C	125 °C	1.75 A	Male Pin	Tin	0.05 in	1.27 mm	26	Surface Mount	Gold	Keying Slot Pick and Place
Samtec Inc. EHF-113-01-S-D-SM-LC-K	2	Shrouded - 4 Wall	Board to Cable/Wire	Phosphor Bronze	8.25 mm	0.325 in	3.05 mm	0.12 in	Square	0.05 in	1.27 mm	30 Áin	0.76 Ám	Solder	Header	Black	Latch Lock/Eject Hooks	All	-55 °C	125 °C	1.75 A	Male Pin	Tin	0.05 in	1.27 mm	26	Surface Mount	Gold	Board Lock Keying Slot Pick and Place
Samtec Inc. EHF-113-01-H-D-SM-LC	2	Shrouded - 4 Wall	Board to Cable/Wire	Phosphor Bronze	8.25 mm	0.325 in	3.05 mm	0.12 in	Square	0.05 in	1.27 mm	30 Áin	0.76 Ám	Solder	Header	Black	Latch Lock/Eject Hooks	All	-55 °C	125 °C	1.75 A	Male Pin	Gold	0.05 in	1.27 mm	26	Surface Mount	Gold	Board Lock Keying Slot	3 µin	0.076 µm
Samtec Inc. EHF-113-01-LM-D-SM-P	2	Shrouded - 4 Wall	Board to Cable/Wire	Phosphor Bronze	8.25 mm	0.325 in	3.05 mm	0.12 in	Square	0.05 in	1.27 mm	10 çin	0.25 çm	Solder	Header	Black	Latch Lock/Eject Hooks	All	-55 °C	125 °C	1.75 A	Male Pin	Tin	0.05 in	1.27 mm	26	Surface Mount	Gold	Keying Slot Pick and Place
Samtec Inc. EHF-113-01-H-D-RA	2	Shrouded - 4 Wall	Board to Cable/Wire	Phosphor Bronze			3.05 mm	0.12 in	Square	0.05 in	1.27 mm	30 Áin	0.76 Ám	Solder	Header	Black	Latch Lock/Eject Hooks	All	-55 °C	125 °C	1.75 A	Male Pin	Gold	0.05 in	1.27 mm	26	Through Hole Right Angle	Gold	Keying Slot	3 µin	0.076 µm	0.09 "	2.29 mm
Samtec Inc. EHF-113-01-L-D-SM-P	2	Shrouded - 4 Wall	Board to Cable/Wire	Phosphor Bronze	8.25 mm	0.325 in	3.05 mm	0.12 in	Square	0.05 in	1.27 mm	10 çin	0.25 çm	Solder	Header	Black	Latch Lock/Eject Hooks	All	-55 °C	125 °C	1.75 A	Male Pin	Tin	0.05 in	1.27 mm	26	Surface Mount	Gold	Keying Slot Pick and Place
Samtec Inc. EHF-113-01-L-D-09	2	Shrouded - 4 Wall	Board to Cable/Wire	Phosphor Bronze	8.25 mm	0.325 in	3.05 mm	0.12 in	Square	0.05 in	1.27 mm	10 çin	0.25 çm	Solder	Header	Black	Latch Lock/Eject Hooks		-55 °C	125 °C	1.75 A	Male Pin	Tin	0.05 in	1.27 mm	26	Through Hole	Gold	Keying Slot			0.107 "	2.71 mm	0.35 in	8.89 mm	25
Samtec Inc. EHF-113-01-L-D-SM-LC-07	2	Shrouded - 4 Wall	Board to Cable/Wire	Phosphor Bronze	8.25 mm	0.325 in	3.05 mm	0.12 in	Square	0.05 in	1.27 mm	10 çin	0.25 çm	Solder	Header	Black	Latch Lock/Eject Hooks		-55 °C	125 °C	1.75 A	Male Pin	Tin	0.05 in	1.27 mm	26	Surface Mount	Gold	Board Lock Keying Slot							25
Samtec Inc. EHF-110-01-SM-D	2	Shrouded - 4 Wall	Board to Cable/Wire	Phosphor Bronze	8.25 mm	0.325 in	3.05 mm	0.12 in	Square	0.05 in	1.27 mm	30 Áin	0.76 Ám	Solder	Header	Black	Latch Lock/Eject Hooks	All	-55 °C	125 °C	1.75 A	Male Pin	Tin	0.05 in	1.27 mm	20	Through Hole	Gold	Keying Slot			0.107 "	2.71 mm	0.35 in	8.89 mm
