Description
General part information

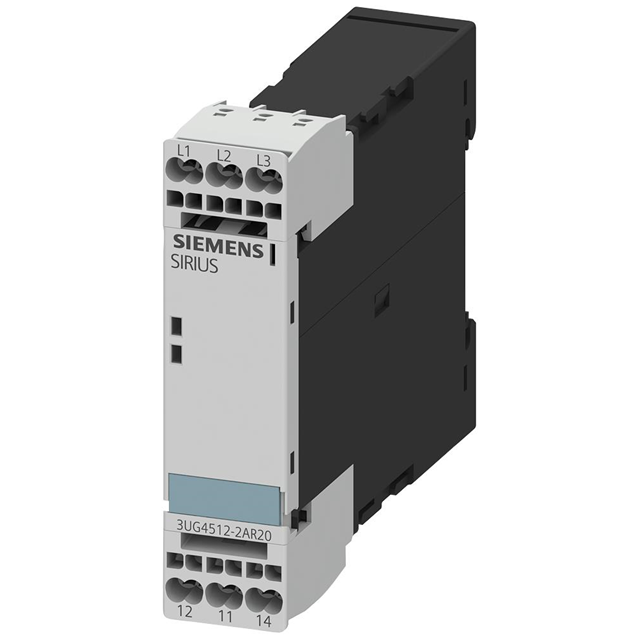

3UG4512 Series
Phase Loss, Phase Sequence 160 ~ 690VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | 3UG45122AR20 |
|---|---|
| Circuit | SPDT (1 Form C) |
| Contact Rating (Current) | 3 A |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | Relay |
| Trip Voltage (Max) | 690 V |
| Trip Voltage (Min) | 160 V |
| Type | Phase Sequence, Phase Loss |
| Voltage - Supply (Maximum) | 690 VAC |
| Voltage - Supply (Minimum) | 160 VAC |
