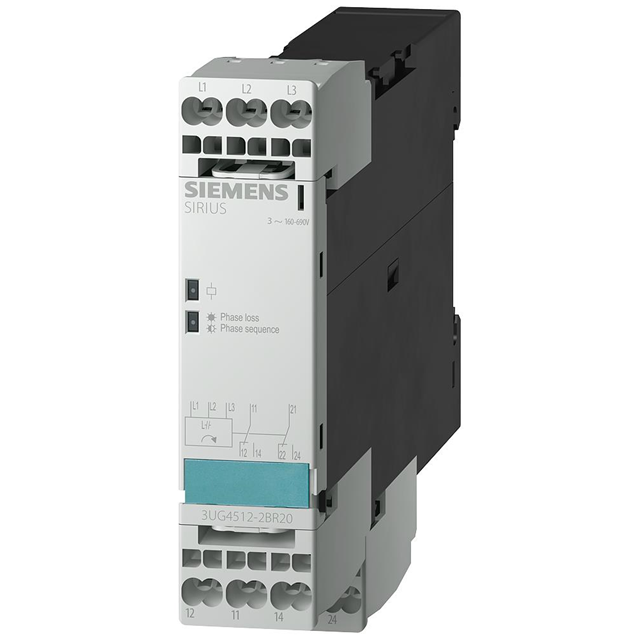

3UG45122BR20
ActiveSiemens
PHASE FAILURE AND SEQUENCE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3UG45122BR20
ActiveSiemens
PHASE FAILURE AND SEQUENCE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3UG45122BR20 |
|---|---|
| Circuit | DPDT (2 Form C) |
| Contact Rating @ Voltage | 3 A, 400 VAC |
| Mounting Type | DIN Rail |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Trip Range [Max] | 690 V AC |
| Trip Range [Min] | 160 V AC |
| Type | Phase Sequence, Phase Loss |
| Voltage - Supply [Max] | 690 VAC |
| Voltage - Supply [Min] | 160 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 184.57 | |
Description
General part information
3UG4512 Series
Phase Loss, Phase Sequence 160 ~ 690VAC
