MB2461E1G03

Obsolete

NKK Switches

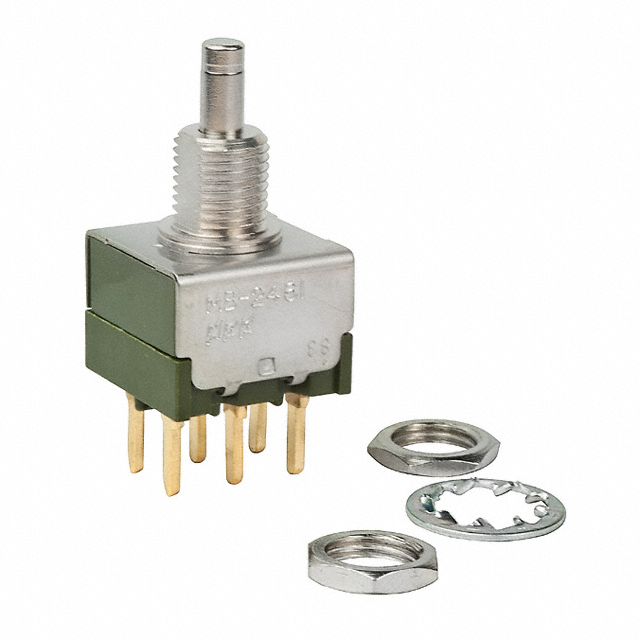

SWITCH PUSH DPDT 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MB2461E1G03

Obsolete

NKK Switches

SWITCH PUSH DPDT 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MB2461E1G03

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	DPDT
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Features	Epoxy Sealed Terminals
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

MB2461E Series

Part	Circuit	Actuator Marking	Termination Style	Current Rating (Amps)	Mounting Type	Type	Panel Cutout Dimensions [diameter]	Mechanical Life	Actuator Type	Electrical Life	Color - Actuator/Cap	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Features	Switch Function	Voltage Rating - DC
NKK Switches MB2461E1A01-FB	DPDT	No Marking	Solder Lug	3 A	Panel Mount Rear	Standard	6.5 mm	200000 Cycles	Button Round	25000 Steps	White	-30 ░C	85 °C	125 V	Epoxy Sealed Terminals	On-Mom
NKK Switches MB2461E1A01	DPDT	No Marking	Solder Lug	3 A	Panel Mount Rear	Standard	6.5 mm	200000 Cycles	Plunger for Cap	25000 Steps		-30 ░C	85 °C	125 V	Epoxy Sealed Terminals	On-Mom
NKK Switches MB2461E1G03-FA	DPDT	No Marking	PC Pin	0.4 VA	Panel Mount Rear	Standard	6.5 mm	200000 Cycles	Button Round	100000 Cycles	Black	-30 ░C	85 °C	28 V	Epoxy Sealed Terminals	On-Mom	28 V
NKK Switches MB2461E1W03-FA	DPDT	No Marking	PC Pin	3 A	Panel Mount Rear	Standard	6.5 mm	200000 Cycles	Button Round	25000 Steps	Black	-30 ░C	85 °C	125 V	Epoxy Sealed Terminals	On-Mom
NKK Switches MB2461E1G03-HA	DPDT	No Marking	PC Pin	0.4 VA	Panel Mount Rear	Standard	6.5 mm	200000 Cycles	Button Round	100000 Cycles	Black	-30 ░C	85 °C	28 V	Epoxy Sealed Terminals	On-Mom	28 V
NKK Switches MB2461E1G03-HC	DPDT	No Marking	PC Pin	0.4 VA	Panel Mount Rear	Standard	6.5 mm	200000 Cycles	Button Round	100000 Cycles	Red	-30 ░C	85 °C	28 V	Epoxy Sealed Terminals	On-Mom	28 V
NKK Switches MB2461E1G03	DPDT	No Marking	PC Pin	0.4 VA	Panel Mount Rear	Standard	6.5 mm	200000 Cycles	Plunger for Cap	100000 Cycles		-30 ░C	85 °C	28 V	Epoxy Sealed Terminals	On-Mom	28 V
NKK Switches MB2461E1G01-FC	DPDT	No Marking	Solder Lug	0.4 VA	Panel Mount Rear	Standard	6.5 mm	200000 Cycles	Button Round	100000 Cycles	Red	-30 ░C	85 °C	28 V	Epoxy Sealed Terminals	On-Mom	28 V
NKK Switches MB2461E1A01-HC	DPDT	No Marking	Solder Lug	3 A	Panel Mount Rear	Standard	6.5 mm	200000 Cycles	Button Round	25000 Steps	Red	-30 ░C	85 °C	125 V	Epoxy Sealed Terminals	On-Mom
NKK Switches MB2461E1W13	DPDT	No Marking	PC Pin	3 A	Panel Mount Rear	Standard	6.5 mm	200000 Cycles	Plunger for Cap	25000 Steps		-30 ░C	85 °C	125 V	Epoxy Sealed Terminals	On-Mom
