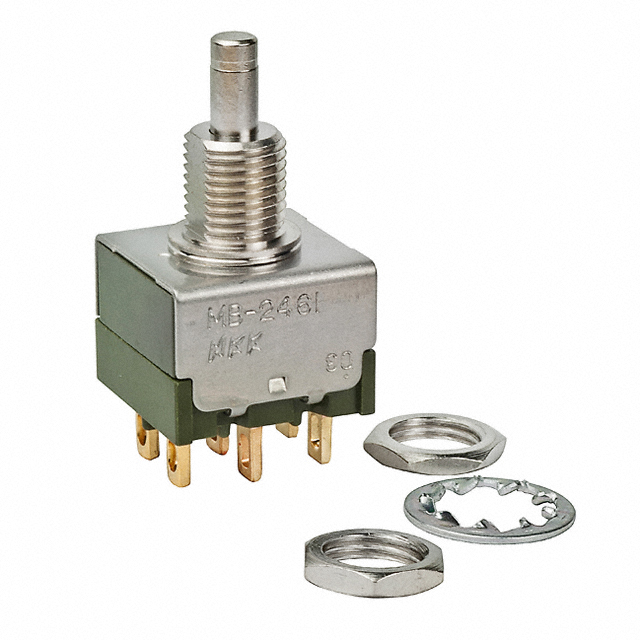

MB2461E1A01
ObsoleteNKK Switches
SWITCH PUSHBUTTON DPDT 3A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MB2461E1A01
ObsoleteNKK Switches
SWITCH PUSHBUTTON DPDT 3A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MB2461E1A01 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Plunger for Cap |
| Circuit | DPDT |
| Current Rating (Amps) | 3 A |
| Electrical Life | 25000 Steps |
| Features | Epoxy Sealed Terminals |
| Mechanical Life | 200000 Cycles |
| Mounting Type | Panel Mount, Rear |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [diameter] | 6.5 mm |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 125 V |
MB2461E Series
| Part | Circuit | Actuator Marking | Termination Style | Current Rating (Amps) | Mounting Type | Type | Panel Cutout Dimensions [diameter] | Mechanical Life | Actuator Type | Electrical Life | Color - Actuator/Cap | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - AC | Features | Switch Function | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | DPDT | No Marking | Solder Lug | 3 A | Panel Mount Rear | Standard | 6.5 mm | 200000 Cycles | Button Round | 25000 Steps | White | -30 ░C | 85 °C | 125 V | Epoxy Sealed Terminals | On-Mom | |
NKK Switches | DPDT | No Marking | Solder Lug | 3 A | Panel Mount Rear | Standard | 6.5 mm | 200000 Cycles | Plunger for Cap | 25000 Steps | -30 ░C | 85 °C | 125 V | Epoxy Sealed Terminals | On-Mom | ||
NKK Switches | DPDT | No Marking | PC Pin | 0.4 VA | Panel Mount Rear | Standard | 6.5 mm | 200000 Cycles | Button Round | 100000 Cycles | Black | -30 ░C | 85 °C | 28 V | Epoxy Sealed Terminals | On-Mom | 28 V |
NKK Switches | DPDT | No Marking | PC Pin | 3 A | Panel Mount Rear | Standard | 6.5 mm | 200000 Cycles | Button Round | 25000 Steps | Black | -30 ░C | 85 °C | 125 V | Epoxy Sealed Terminals | On-Mom | |
NKK Switches | DPDT | No Marking | PC Pin | 0.4 VA | Panel Mount Rear | Standard | 6.5 mm | 200000 Cycles | Button Round | 100000 Cycles | Black | -30 ░C | 85 °C | 28 V | Epoxy Sealed Terminals | On-Mom | 28 V |
NKK Switches | DPDT | No Marking | PC Pin | 0.4 VA | Panel Mount Rear | Standard | 6.5 mm | 200000 Cycles | Button Round | 100000 Cycles | Red | -30 ░C | 85 °C | 28 V | Epoxy Sealed Terminals | On-Mom | 28 V |
NKK Switches | DPDT | No Marking | PC Pin | 0.4 VA | Panel Mount Rear | Standard | 6.5 mm | 200000 Cycles | Plunger for Cap | 100000 Cycles | -30 ░C | 85 °C | 28 V | Epoxy Sealed Terminals | On-Mom | 28 V | |
NKK Switches | DPDT | No Marking | Solder Lug | 0.4 VA | Panel Mount Rear | Standard | 6.5 mm | 200000 Cycles | Button Round | 100000 Cycles | Red | -30 ░C | 85 °C | 28 V | Epoxy Sealed Terminals | On-Mom | 28 V |
NKK Switches | DPDT | No Marking | Solder Lug | 3 A | Panel Mount Rear | Standard | 6.5 mm | 200000 Cycles | Button Round | 25000 Steps | Red | -30 ░C | 85 °C | 125 V | Epoxy Sealed Terminals | On-Mom | |
NKK Switches | DPDT | No Marking | PC Pin | 3 A | Panel Mount Rear | Standard | 6.5 mm | 200000 Cycles | Plunger for Cap | 25000 Steps | -30 ░C | 85 °C | 125 V | Epoxy Sealed Terminals | On-Mom |
