0955-0-15-20-71-14-11-0
ActiveMill-Max Manufacturing Corp.

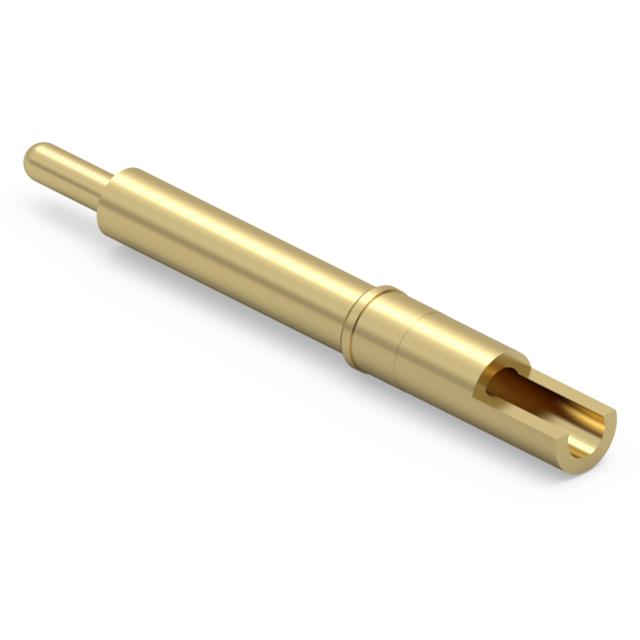

SOLDERCUP SPRING-LOADED PIN
Deep-Dive with AI
Search across all available documentation for this part.
0955-0-15-20-71-14-11-0
ActiveMill-Max Manufacturing Corp.
SOLDERCUP SPRING-LOADED PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0955-0-15-20-71-14-11-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Current Rating (Amps) | 5.2 A |
| Features | 26 AWG |
| Mating Cycles | 1000000 |
| Maximum Working Height [Max] | 6.53 mm |
| Maximum Working Height [Max] | 0.257 in |
| Minimum Working Height [Min] | 0.174 in |
| Minimum Working Height [Min] | 4.42 mm |
| Mounting Type | Solder Cup, Through Hole |
| Operating Force - Mid Compression | 60 gf |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pad Layout Dimension [diameter] | 1.07 mm |
| Pad Layout Dimension [diameter] | 0.042 in |
| Plunger Size [diameter] | 0.48 mm |
| Plunger Size [diameter] | 0.019 in |
| Recommended Working Height [z] | 5.13 mm |
| Recommended Working Height [z] | 0.202 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.04 | |
| 10 | $ 0.88 | |||
| 25 | $ 0.85 | |||
| 50 | $ 0.83 | |||
| 100 | $ 0.79 | |||
| 250 | $ 0.72 | |||
| 500 | $ 0.65 | |||
| 1000 | $ 0.58 | |||
| 2500 | $ 0.52 | |||
Description
General part information
0955-0 Series
Contact Spring Through Hole, Solder Cup
