XM3C-1522-502

Active

Omron Electronics Inc-EMC Div

CONN D-SUB PLUG 15POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet How to Read Date Codes +1

XM3C-1522-502

Active

Omron Electronics Inc-EMC Div

CONN D-SUB PLUG 15POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 9.10
		10	$ 8.19
		25	$ 7.72
		70	$ 7.52
		140	$ 7.32
		280	$ 6.53
		490	$ 6.14
		980	$ 5.42

Description

General part information

XM3C Series

15 Position D-Sub Plug, Male Pins Connector

Documents

Technical documentation and resources

Datasheet

How to Read Date Codes

XM2x,XM3x Series Overview

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XM3C-1522-502	XM3C Series

Color	Black	Black
Connector Style	D-Sub	D-Sub
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish	Gold	Gold
Contact Finish Thickness	16 µin	16 µin
Contact Finish Thickness	0.41 µm	0.41 µm
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Type	Signal	Signal
Current Rating (Amps)	5 A	3 - 5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Features	Shielded, Board Lock	Shielded, Board Lock
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded), Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount, Through Hole, Right Angle
Number of Positions	15	9 - 37
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 - -25 °C
Shell Material, Finish	Nickel Plated, Steel	Nickel Plated, Steel
Shell Size, Connector Layout	2	2
Shell Size, Connector Layout	-	4 (DC, C)
Shell Size, Connector Layout	-	DB, B, DE, E
Shell Size, Connector Layout	-	1 - 3
Termination	Solder	Solder
Voltage Rating	300 VDC	300 VDC

XM3C Series

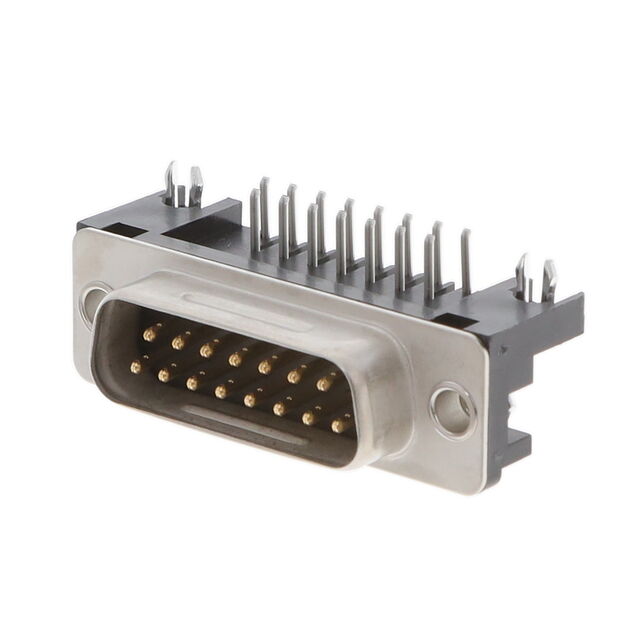

CONN D-SUB PLUG 15POS R/A SLDR

Part	Flange Feature	Voltage Rating	Shell Size, Connector Layout	Color	Termination	Current Rating (Amps)	Contact Finish	Shell Material, Finish	Number of Positions	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Material Flammability Rating	Contact Type	Contact Material	Connector Type	Mounting Type	Number of Rows	Features	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size, Connector Layout	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
Omron Electronics Inc-EMC Div XM3C-1522-502	Housing/Shell (Unthreaded)	300 VDC	2	Black	Solder	5 A	Gold	Nickel Plated, Steel	15	D-Sub	16 µin	0.41 µm	UL94 V-0	Signal	Phosphor Bronze	Male Pins, Plug	Panel Mount, Right Angle, Through Hole	2	Board Lock, Shielded	Polybutylene Terephthalate (PBT), Glass Filled	105 ░C	-55 °C
Omron Electronics Inc-EMC Div XM3C-3722-132	Female Screwlock (4-40), Mating Side	300 VDC		Black	Solder	5 A	Gold	Nickel Plated, Steel	37	D-Sub	16 µin	0.41 µm	UL94 V-0	Signal	Phosphor Bronze	Male Pins, Plug	Panel Mount, Right Angle, Through Hole	2	Board Lock, Shielded	Polybutylene Terephthalate (PBT), Glass Filled	105 ░C	-55 °C	4 (DC, C)
Omron Electronics Inc-EMC Div XM3C-2522-132	Female Screwlock (4-40), Mating Side	300 VDC		Black	Solder	5 A	Gold	Nickel Plated, Steel		D-Sub	16 µin	0.41 µm	UL94 V-0	Signal	Phosphor Bronze	Male Pins, Plug	Panel Mount, Right Angle, Through Hole	2	Board Lock, Shielded	Polybutylene Terephthalate (PBT), Glass Filled	105 ░C	-55 °C		B, DB	3
Omron Electronics Inc-EMC Div XM3C-3722-112		300 VDC		Black	Solder	5 A	Gold	Nickel Plated, Steel	37	D-Sub	16 µin	0.41 µm	UL94 V-0	Signal	Phosphor Bronze	Male Pins, Plug	Panel Mount, Right Angle, Through Hole	2	Board Lock, Shielded	Polybutylene Terephthalate (PBT), Glass Filled	105 ░C	-55 °C	4 (DC, C)
Omron Electronics Inc-EMC Div XM3C0942112LS		300 VDC		Black	Solder	3 A	Gold	Nickel Plated, Steel	9	D-Sub	16 µin	0.41 µm	UL94 V-0	Signal	Phosphor Bronze	Male Pins, Plug	Panel Mount, Right Angle, Through Hole	2	Shielded	Polybutylene Terephthalate (PBT), Glass Filled	105 ░C	-25 °C		DE, E	1
Omron Electronics Inc-EMC Div XM3C-0922-132	Female Screwlock (4-40), Mating Side	300 VDC		Black	Solder	5 A	Gold	Nickel Plated, Steel	9	D-Sub	16 µin	0.41 µm	UL94 V-0	Signal	Phosphor Bronze	Male Pins, Plug	Panel Mount, Right Angle, Through Hole	2	Board Lock, Shielded	Polybutylene Terephthalate (PBT), Glass Filled	105 ░C	-55 °C		DE, E	1
Omron Electronics Inc-EMC Div XM3C-2522	Housing/Shell (Unthreaded)	300 VDC		Black	Solder	5 A	Gold	Nickel Plated, Steel		D-Sub	16 µin	0.41 µm	UL94 V-0	Signal	Phosphor Bronze	Male Pins, Plug	Through Hole, Right Angle	2	Shielded	Polybutylene Terephthalate (PBT), Glass Filled	105 ░C	-55 °C		B, DB	3
Omron Electronics Inc-EMC Div XM3C-0922	Housing/Shell (Unthreaded)	300 VDC		Black	Solder	5 A	Gold	Nickel Plated, Steel	9	D-Sub	16 µin	0.41 µm	UL94 V-0	Signal	Phosphor Bronze	Male Pins, Plug	Through Hole, Right Angle	2	Shielded	Polybutylene Terephthalate (PBT), Glass Filled	105 ░C	-55 °C		DE, E	1
