XM3C-0922-132

Active

Omron Electronics Inc-EMC Div

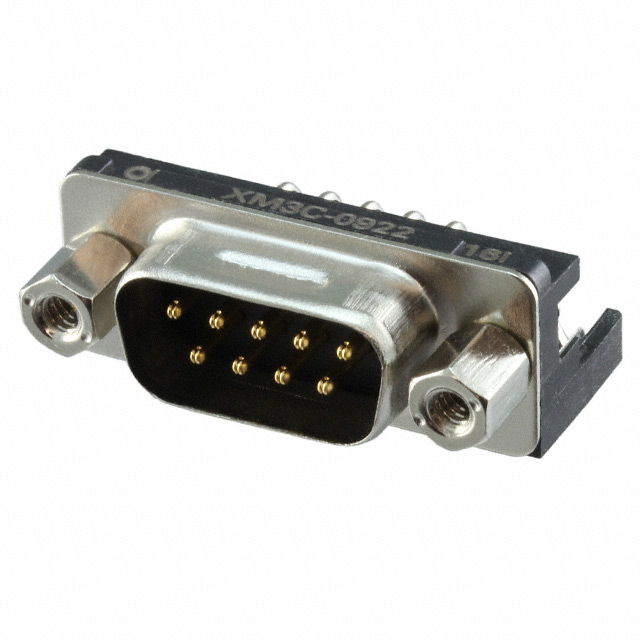

CONN D-SUB PLUG 9POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes XM2x,XM3x Series Overview +1

XM3C-0922-132

Active

Omron Electronics Inc-EMC Div

CONN D-SUB PLUG 9POS R/A SLDR

Deep-Dive with AI

DocumentsHow to Read Date Codes XM2x,XM3x Series Overview +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 9.71
		10	$ 8.73
		25	$ 8.23
		40	$ 8.02
		90	$ 7.81
		270	$ 6.96
		450	$ 6.54
		990	$ 5.78

Description

General part information

XM3C Series

9 Position D-Sub Plug, Male Pins Connector

Documents

Technical documentation and resources

How to Read Date Codes

XM2x,XM3x Series Overview

Datasheet

Specification	XM3C-0922-132	XM3C Series

Color	Black	Black
Connector Style	D-Sub	D-Sub
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish	Gold	Gold
Contact Finish Thickness	16 µin	16 µin
Contact Finish Thickness	0.41 µm	0.41 µm
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Type	Signal	Signal
Current Rating (Amps)	5 A	3 - 5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Features	Shielded, Board Lock	Shielded, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side	Housing/Shell (Unthreaded), Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount, Through Hole, Right Angle
Number of Positions	9	9 - 37
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 - -25 °C
Shell Material, Finish	Nickel Plated, Steel	Nickel Plated, Steel
Shell Size, Connector Layout	-	2
Shell Size, Connector Layout	-	4 (DC, C)
Shell Size, Connector Layout [custom]	DE, E	DB, B, DE, E
Shell Size, Connector Layout [custom]	1	1 - 3
Termination	Solder	Solder
Voltage Rating	300 VDC	300 VDC
