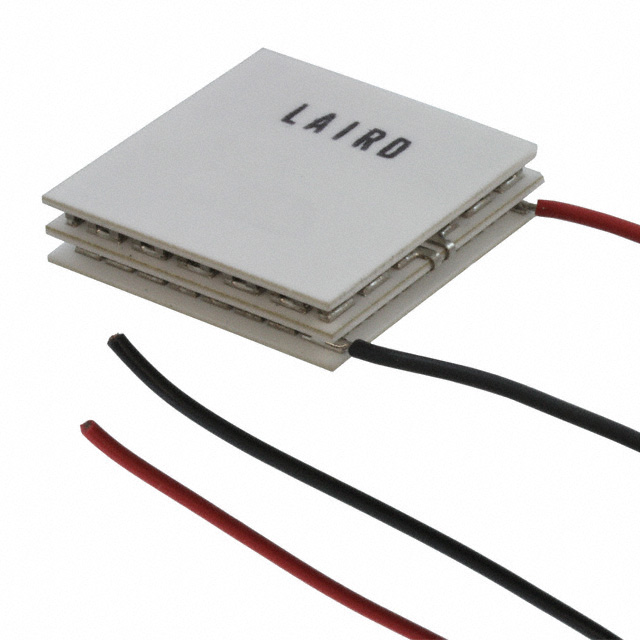

PELTIR MS2,190,10,13,08,20,11,W8

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIR MS2,190,10,13,08,20,11,W8

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	16505-302	16505 Series

Current - Max [Max]	2.8 A	2.8 A
Delta Tmax @ Th	87 °C	87 °C
Features	Lead Wires, Non-Sealed	Sealed - Silicone RTV, Lead Wires, Lead Wires, Non-Sealed
Height [z]	6.45 mm	6.04 - 6.6 mm
Number of Stages	2	2 - 3
Operating Temperature	80 °C	80 °C
Qmax @ Th	16.4 W	16.4 W
Size / Dimension [x]	30 mm	30 mm
Size / Dimension [y]	30 mm	30 mm
Voltage - Max [Max]	15.6 V	15.6 V

PELTIR MS2,190,10,13,08,20,11,W8

Part	Number of Stages	Size / Dimension [x]	Size / Dimension [y]	Height [z]	Features	Voltage - Max [Max]	Current - Max [Max]	Operating Temperature	Delta Tmax @ Th	Qmax @ Th
Laird Thermal Systems, Inc. 16505-330	3	30 mm	30 mm	6.04 mm	Lead Wires, Sealed - Silicone RTV	15.6 V
Laird Thermal Systems, Inc. 16505-304	2	30 mm	30 mm	6.6 mm	Lead Wires, Non-Sealed	15.6 V	2.8 A	80 °C	87 °C	16.4 W
Laird Thermal Systems, Inc. 16505-302	2	30 mm	30 mm	6.45 mm	Lead Wires, Non-Sealed	15.6 V	2.8 A	80 °C	87 °C	16.4 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 112.86

General part information

Peltier Module 16.4W @ 25°C 2.8 A 80°C
