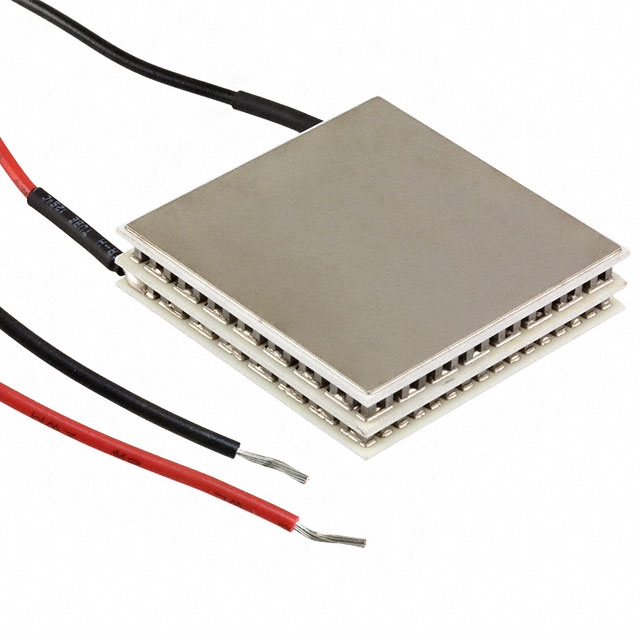

16505-304

Active

Laird Thermal Systems, Inc.

PELTIR MS2,190,10,13,08,20,00,W8

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIR MS2,190,10,13,08,20,00,W8

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 112.11

General part information

Peltier Module 16.4W @ 25°C 2.8 A 80°C

Technical documentation and resources

Specification	16505-304	16505 Series

Current - Max [Max]	2.8 A	2.8 A
Delta Tmax @ Th	87 °C	87 °C
Features	Lead Wires, Non-Sealed	Sealed - Silicone RTV, Lead Wires, Lead Wires, Non-Sealed
Height [z]	6.6 mm	6.04 - 6.6 mm
Number of Stages	2	2 - 3
Operating Temperature	80 °C	80 °C
Qmax @ Th	16.4 W	16.4 W
Size / Dimension [x]	30 mm	30 mm
Size / Dimension [y]	30 mm	30 mm
Voltage - Max [Max]	15.6 V	15.6 V

Part	Number of Stages	Size / Dimension [x]	Size / Dimension [y]	Height [z]	Features	Voltage - Max [Max]	Current - Max [Max]	Operating Temperature	Delta Tmax @ Th	Qmax @ Th
Laird Thermal Systems, Inc. 16505-330	3	30 mm	30 mm	6.04 mm	Lead Wires, Sealed - Silicone RTV	15.6 V
Laird Thermal Systems, Inc. 16505-304	2	30 mm	30 mm	6.6 mm	Lead Wires, Non-Sealed	15.6 V	2.8 A	80 °C	87 °C	16.4 W
Laird Thermal Systems, Inc. 16505-302	2	30 mm	30 mm	6.45 mm	Lead Wires, Non-Sealed	15.6 V	2.8 A	80 °C	87 °C	16.4 W
