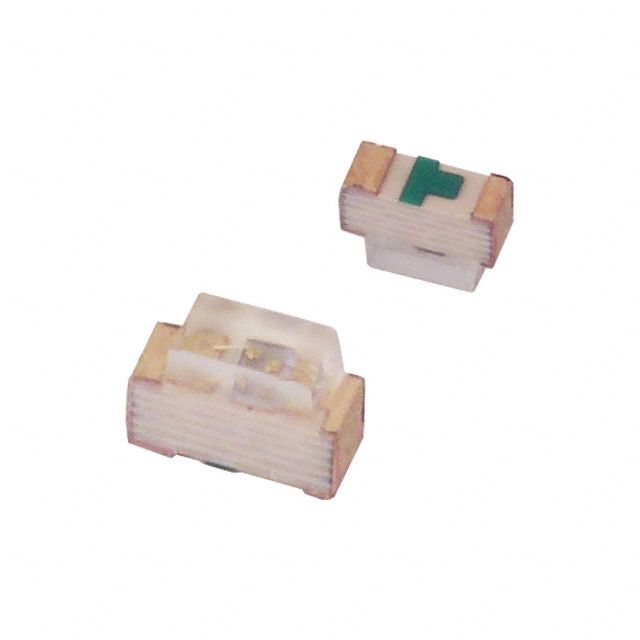

LTST-S270TBKT

Active

Diodes Inc

SINGLE COLOR LED, BLUE, WATER CLEAR, 1.2MM,

Search across all available documentation for this part.

Active

Diodes Inc

SINGLE COLOR LED, BLUE, WATER CLEAR, 1.2MM,

Technical Specifications

Parameters and characteristics for this part

Part	Lens Transparency	Mounting Type	Voltage - Forward (Vf) (Typ)	Viewing Angle	Millicandela Rating	Wavelength - Dominant	Color	Configuration	Lens Size [y]	Lens Size [x]	Supplier Device Package	Lens Style	Height (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Current - Test	Lens Color	Package / Case	Wavelength - Peak
Diodes Inc LTST-S270TBKT	Clear	Surface Mount Right Angle	3.3 V	130 °	104 mcd	470 nm	Blue	Standard	0.6 mm	1.2 mm	Chip LED	Rectangle with Flat Top	0.6 mm	1.6 mm	1.15 mm	20 mA	Colorless	0603 (1608 Metric)	468 nm
Diodes Inc LTST-S270KDKT	Clear	Surface Mount	2 V	130 °	24.75 mcd	638 nm	Red		0.6 mm	1.2 mm	Chip LED	Rectangle with Flat Top	1.25 mm	1.65 mm	0.6 mm	20 mA	Colorless	2-SMD No Lead	650 nm
Diodes Inc LTST-S270CKT	Clear	Surface Mount Right Angle	1.8 V	130 °	16 mcd	638 nm	Red	Standard	0.6 mm	1.2 mm	SMD	Rectangle with Flat Top	0.6 mm	1.6 mm	1.15 mm	20 mA	Colorless	2-SMD No Lead Exposed Pad	660 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Blue 470nm LED Indication - Discrete 3.3V 0603 (1608 Metric)
