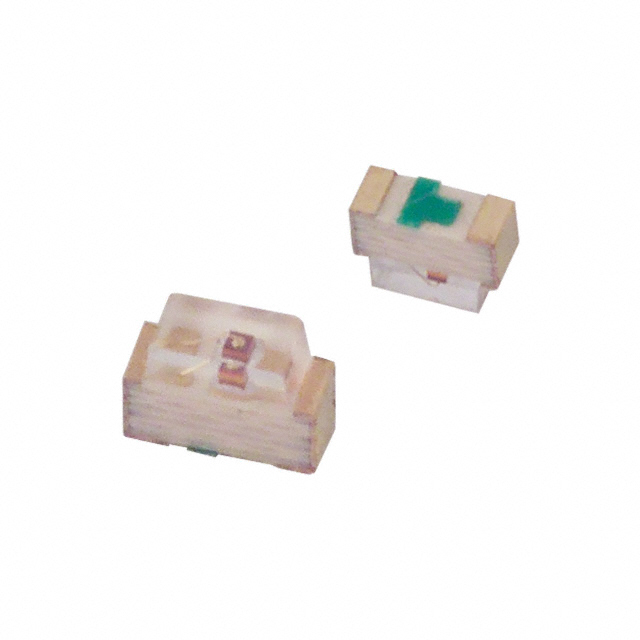

LTST-S270CKT

Obsolete

Diodes Inc

LED RED CLEAR SMD R/A

Search across all available documentation for this part.

Obsolete

Diodes Inc

LED RED CLEAR SMD R/A

Technical Specifications

Parameters and characteristics for this part

Part	Lens Transparency	Mounting Type	Voltage - Forward (Vf) (Typ)	Viewing Angle	Millicandela Rating	Wavelength - Dominant	Color	Configuration	Lens Size [y]	Lens Size [x]	Supplier Device Package	Lens Style	Height (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Current - Test	Lens Color	Package / Case	Wavelength - Peak
Diodes Inc LTST-S270TBKT	Clear	Surface Mount Right Angle	3.3 V	130 °	104 mcd	470 nm	Blue	Standard	0.6 mm	1.2 mm	Chip LED	Rectangle with Flat Top	0.6 mm	1.6 mm	1.15 mm	20 mA	Colorless	0603 (1608 Metric)	468 nm
Diodes Inc LTST-S270KDKT	Clear	Surface Mount	2 V	130 °	24.75 mcd	638 nm	Red		0.6 mm	1.2 mm	Chip LED	Rectangle with Flat Top	1.25 mm	1.65 mm	0.6 mm	20 mA	Colorless	2-SMD No Lead	650 nm
Diodes Inc LTST-S270CKT	Clear	Surface Mount Right Angle	1.8 V	130 °	16 mcd	638 nm	Red	Standard	0.6 mm	1.2 mm	SMD	Rectangle with Flat Top	0.6 mm	1.6 mm	1.15 mm	20 mA	Colorless	2-SMD No Lead Exposed Pad	660 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Red 638nm LED Indication - Discrete 1.8V 2-SMD, No Lead Exposed Pad
