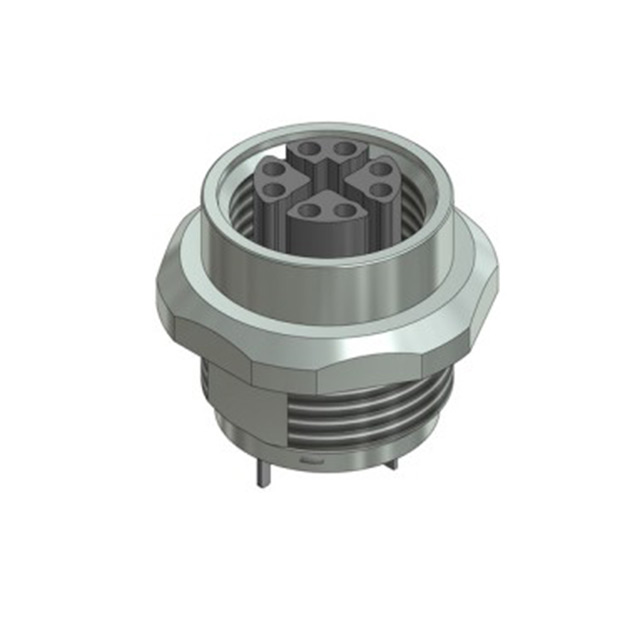

43-02757
ActiveAmphenol CONEC
CONN PLUG FMALE 8POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
43-02757
ActiveAmphenol CONEC
CONN PLUG FMALE 8POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 43-02757 |
|---|---|
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Zinc |
| Current Rating (Amps) | 0.5 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Liquid Crystal Polymer - Glass Fiber (LCP-GF) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead |
| Mounting Type | Panel Mount, Surface Mount |
| Number of Positions | 8 |
| Operating Temperature [Max] | 203 °F |
| Operating Temperature [Min] | -25 °C |
| Orientation | X |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Copper Zinc |
| Shell Size - Insert | M12-8 |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 48 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 14.35 | |
Description
General part information
43-0275 Series
8 Position Circular Connector Plug, Female Sockets Solder
