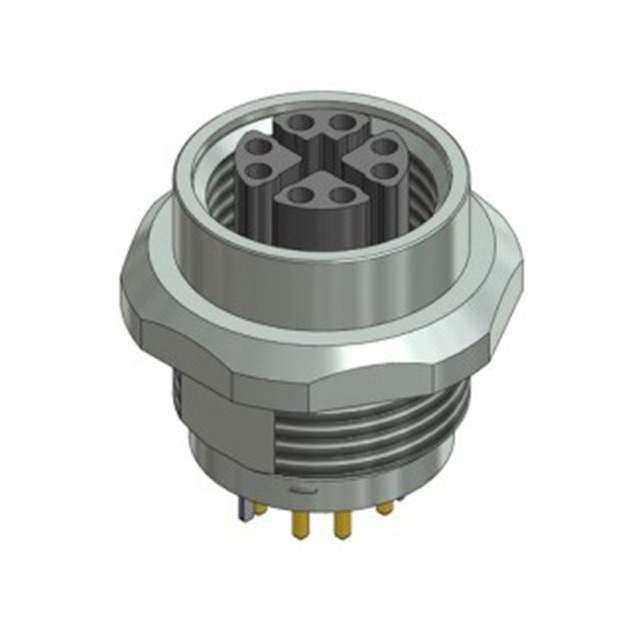

43-02758

Active

Amphenol CONEC

CONN PLUG FMALE 8POS GOLD SOLDER

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN PLUG FMALE 8POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	43-02758

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Current Rating (Amps)	0.5 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Liquid Crystal Polymer - Glass Fiber (LCP-GF)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead
Mounting Type	Through Hole, Panel Mount
Number of Positions	8
Operating Temperature [Max]	203 °F
Operating Temperature [Min]	-25 °C
Orientation	X
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Zinc
Shell Size - Insert	M12-8
Shielding	Shielded
Termination	Solder
Voltage Rating	48 VDC

Part	Orientation	Mounting Feature	Voltage Rating	Shell Material	Termination	Shell Finish	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Number of Positions	Contact Material	Insert Material	Ingress Protection	Contact Finish - Mating	Connector Type	Current Rating (Amps)	Color	Mounting Type	Shell Size - Insert	Material Flammability Rating
Amphenol CONEC 43-02758	X	Bulkhead	48 VDC	Copper Zinc	Solder	Nickel	Shielded	203 °F	-25 °C	Metal	8	Copper Zinc	Liquid Crystal Polymer - Glass Fiber (LCP-GF)	IP67 - Dust Tight Waterproof	Gold	Female Sockets Plug	0.5 A	Silver	Panel Mount Through Hole	M12-8	UL94 V-0
Amphenol CONEC 43-02757	X	Bulkhead	48 VDC	Copper Zinc	Solder	Nickel	Shielded	203 °F	-25 °C	Metal	8	Copper Zinc	Liquid Crystal Polymer - Glass Fiber (LCP-GF)	IP67 - Dust Tight Waterproof	Gold	Female Sockets Plug	0.5 A	Silver	Panel Mount Surface Mount	M12-8	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 15.10

General part information

8 Position Circular Connector Plug, Female Sockets Solder
