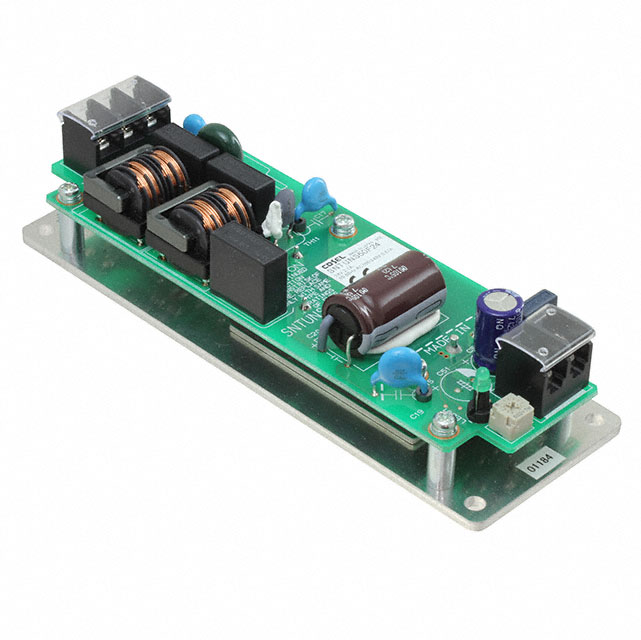

SNTUNS50F24
ActiveCosel USA, Inc.
AC/DC CONVERTER 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SNTUNS50F24
ActiveCosel USA, Inc.
AC/DC CONVERTER 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SNTUNS50F24 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, cURus |
| Current - Output 1 | 2.1 A |
| Efficiency | 84 % |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 203 °F |
| Operating Temperature [Min] | -20 C |
| Size / Dimension [x] | 150.1 mm |
| Size / Dimension [x] | 5.91 " |
| Size / Dimension [y] | 1.97 " |
| Size / Dimension [y] | 50 mm |
| Size / Dimension [z] | 1.42 in |
| Size / Dimension [z] | 36.1 mm |
| Type | Open Frame |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 197.38 | |
| 5 | $ 191.21 | |||
| 10 | $ 185.04 | |||
| 25 | $ 178.87 | |||
| 50 | $ 172.71 | |||
Description
General part information
SNTUNS50 Series
Open Frame AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
