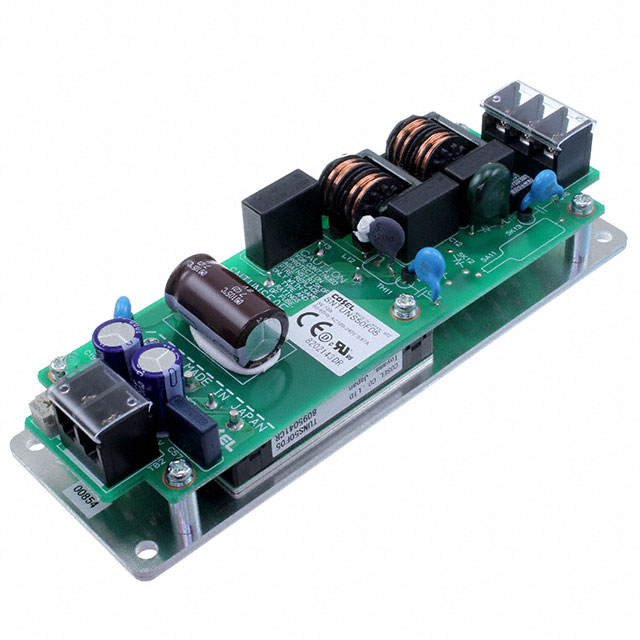

SNTUNS50F05

Active

Cosel USA, Inc.

AC/DC CONVERTER 5V

Search across all available documentation for this part.

Active

Cosel USA, Inc.

AC/DC CONVERTER 5V

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Efficiency	Approval Agency	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 1	Voltage - Isolation	Number of Outputs	Mounting Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Type
Cosel USA, Inc. SNTUNS50F05	ITE (Commercial)	78 %	CE cURus	5 V	-20 C	203 °F	10 A	3000 V	1	Chassis Mount	1.42 in	36.1 mm	1.97 "	50 mm	150.1 mm	5.91 "	Open Frame
Cosel USA, Inc. SNTUNS50F12	ITE (Commercial)	83 %	CE cURus	12 V	-20 C	203 °F	4.2 A	3000 V	1	Chassis Mount	1.42 in	36.1 mm	1.97 "	50 mm	150.1 mm	5.91 "	Open Frame
Cosel USA, Inc. SNTUNS50F24	ITE (Commercial)	84 %	CE cURus	24 V	-20 C	203 °F	2.1 A	3000 V	1	Chassis Mount	1.42 in	36.1 mm	1.97 "	50 mm	150.1 mm	5.91 "	Open Frame

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 197.38

General part information

Open Frame AC DC Converters 1 Output 5V 85 ~ 264 VAC Input
