627-3W3-624-5T5

Active

EDAC Inc.

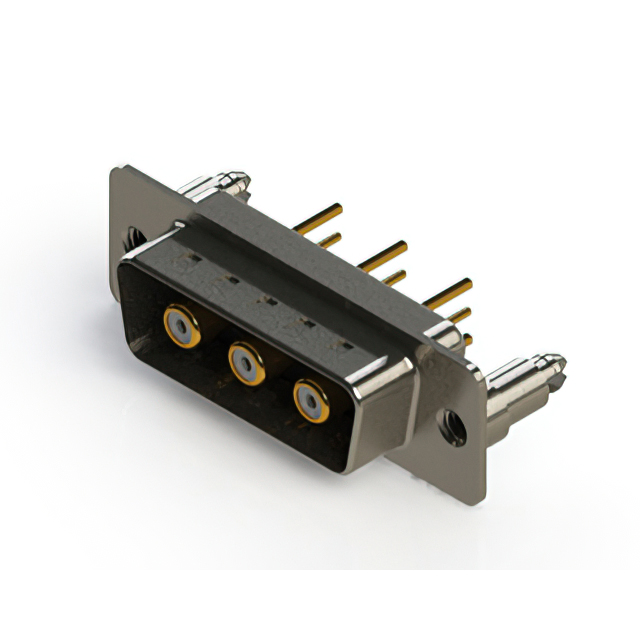

COMBINATION LAYOUT D SUB CONNECTOR, 627C SERIES, DA-3W3, PLUG, 3 CONTACTS, 3 COAX, SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

627-3W3-624-5T5

Active

EDAC Inc.

COMBINATION LAYOUT D SUB CONNECTOR, 627C SERIES, DA-3W3, PLUG, 3 CONTACTS, 3 COAX, SOLDER

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	627-3W3-624-5T5

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Coax
Dielectric Material	Polyester Thermoplastic
Features	Board Lock, Shielded, Grounding Indents
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	3
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	2 (DA, A)
Shell Size, Connector Layout [custom]	3W3
Termination	Solder
Voltage Rating	125 VDC

627-3W3 Series

...

Part	Contact Type	Contact Finish Thickness	Voltage Rating	Flange Feature	Contact Finish	Dielectric Material	Material Flammability Rating	Number of Positions	Termination	Contact Material	Shell Material, Finish	Connector Type	Features	Current Rating (Amps)	Connector Style	Number of Rows	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Finish Thickness	Contact Finish Thickness	Mounting Type
EDAC Inc. 627-3W3-224-2N4	Power	Flash	125 VDC	4-40	Gold	Polyester Thermoplastic	UL94 V-0	3	Solder	Copper Alloy	Nickel Plated Steel	Male Pins Plug	Grounding Indents Shielded	20 A	Combo D-Sub	1	2 (DA A)	3W3	-55 °C	125 °C	Black
EDAC Inc. 627-3W3-224-1TB	Power	Flash	125 VDC	Board Side (M3)	Gold	Polyester Thermoplastic	UL94 V-0	3	Solder	Copper Alloy		Male Pins Plug	Grounding Indents Shielded	10 A	Combo D-Sub	1	2 (DA A)	3W3	-55 °C	125 °C	Black
EDAC Inc. 627-3W3-224-3T2	Power	Flash	125 VDC	4-40 Board Side	Gold	Polyester Thermoplastic	UL94 V-0	3	Solder	Copper Alloy		Male Pins Plug	Grounding Indents Shielded	30 A	Combo D-Sub	1	2 (DA A)	3W3	-55 °C	125 °C	Black
EDAC Inc. 627-3W3-622-1NA	Power		125 VDC	Board Side (M3)	Gold	Polyester Thermoplastic	UL94 V-0	3		Copper Alloy	Nickel Plated Steel	Male Pins Plug	Grounding Indents Shielded	10 A	Combo D-Sub	1	2 (DA A)	3W3	-55 °C	125 °C	Black	0.76 Ám	30 Áin	Free Hanging (In-Line)
EDAC Inc. 627-3W3-624-5T5	Coax		125 VDC	4-40 Board Side	Gold	Polyester Thermoplastic	UL94 V-0	3	Solder	Copper Alloy		Male Pins Plug	Board Lock Grounding Indents Shielded		Combo D-Sub	1	2 (DA A)	3W3	-55 °C	125 °C	Black	0.76 Ám	30 Áin	Through Hole
EDAC Inc. 627-3W3-224-1NB	Power	Flash	125 VDC	Board Side (M3)	Gold	Polyester Thermoplastic	UL94 V-0	3	Solder	Copper Alloy	Nickel Plated Steel	Male Pins Plug	Grounding Indents Shielded	10 A	Combo D-Sub	1	2 (DA A)	3W3	-55 °C	125 °C	Black
EDAC Inc. 627-3W3-224-3NA	Power	Flash	125 VDC	Board Side (M3)	Gold	Polyester Thermoplastic	UL94 V-0	3	Solder	Copper Alloy	Nickel Plated Steel	Male Pins Plug	Grounding Indents Shielded	30 A	Combo D-Sub	1	2 (DA A)	3W3	-55 °C	125 °C	Black
EDAC Inc. 627-3W3-624-3N2	Power		125 VDC	4-40 Board Side	Gold	Polyester Thermoplastic	UL94 V-0	3	Solder	Copper Alloy	Nickel Plated Steel	Male Pins Plug	Grounding Indents Shielded	30 A	Combo D-Sub	1	2 (DA A)	3W3	-55 °C	125 °C	Black	0.76 Ám	30 Áin
EDAC Inc. 627-3W3-624-7ND	Coax		125 VDC	Board Side (M3)	Gold	Polyester Thermoplastic	UL94 V-0	3	Solder	Copper Alloy	Nickel Plated Steel	Male Pins Plug	Board Lock Grounding Indents Shielded		Combo D-Sub	1	2 (DA A)	3W3	-55 °C	125 °C	Black	0.76 Ám	30 Áin	Through Hole
EDAC Inc. 627-3W3-624-1T2	Power		125 VDC	4-40 Board Side	Gold	Polyester Thermoplastic	UL94 V-0	3	Solder	Copper Alloy		Male Pins Plug	Grounding Indents Shielded	10 A	Combo D-Sub	1	2 (DA A)	3W3	-55 °C	125 °C	Black	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	200	$ 14.21
Newark	Each	1	$ 17.07
		600	$ 15.64
		1200	$ 14.44
		2400	$ 13.90
		5400	$ 12.29

Description

General part information

627-3W3 Series

3 (Coax) Position D-Sub, Combo Plug, Male Pins Connector
