CONN D-SUB PLUG 3P PNL MNT SLDR

627-3W3-224-1NB

Active

EDAC Inc.

CONN D-SUB PLUG 3P PNL MNT SLDR

Description Specifications Series Pricing CAD Documents

Description

General part information

627-3W3 Series

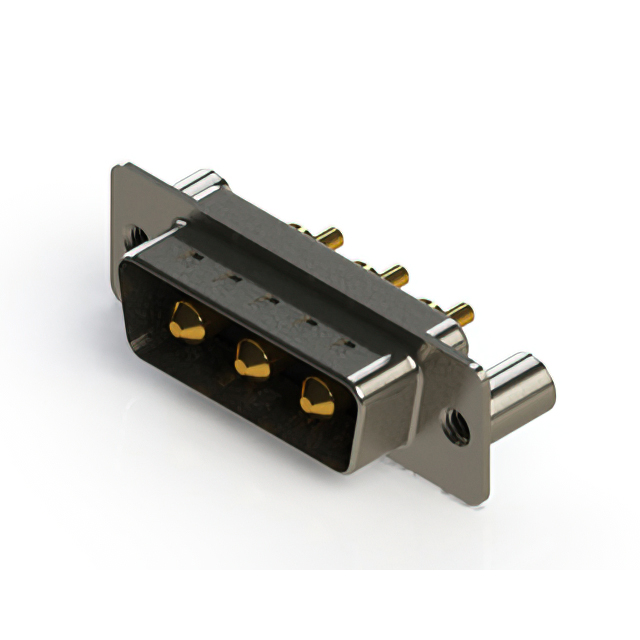

3 (Power) Position D-Sub, Combo Plug, Male Pins Connector

Technical Specifications

Parameters and characteristics for this part

Specification	627-3W3-224-1NB

Color	Black
Connector Layout	A, DA
Connector Style	Combo, D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Material	Copper Alloy
Contact Type	Power
Current Rating	10 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded, Grounding Indents
Finish	Nickel Plated
Flange Feature	Board Side (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount
Number of Positions	3
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Part Code	3W3
Position Types	Power
Shell Material	Steel
Shell Size	2
Termination	Solder
Voltage Rating	125 V

627-3W3 Series

...

Part	Number of Rows	Features	Shell Material	Finish	Termination	Shell Size	Connector Layout	Part Code	Connector Type	Contact Type	Flange Feature	Contact Finish	Material Flammability Rating	Mounting Type	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Current Rating	Connector Style	Number of Positions	Position Types	Operating Temperature (Max)	Operating Temperature (Min)	Color	Contact Material	Voltage Rating	Dielectric Material
EDAC Inc. 627-3W3-224-2N4	1	Grounding Indents Shielded	Steel	Nickel Plated	Solder	2	A DA	3W3	Male Pins Plug	Power	Board Side (4-40) Mating Side (4-40)	Gold	UL94 V-0	Panel Mount	0	Flash	Flash	20 A	Combo D-Sub	3	Power	125 °C	-55 °C	Black	Copper Alloy	125 V	Polyester Thermoplastic
EDAC Inc. 627-3W3-224-1TB	1	Grounding Indents Shielded	Steel	Tin Plated	Solder	2	A DA	3W3	Male Pins Plug	Power	Board Side (M3)	Gold	UL94 V-0	Panel Mount	0	Flash	Flash	10 A	Combo D-Sub	3	Power	125 °C	-55 °C	Black	Copper Alloy	125 V	Polyester Thermoplastic
EDAC Inc. 627-3W3-224-3T2	1	Grounding Indents Shielded	Steel	Tin Plated	Solder	2	A DA	3W3	Male Pins Plug	Power	Board Side (4-40)	Gold	UL94 V-0	Panel Mount	0	Flash	Flash	30 A	Combo D-Sub	3	Power	125 °C	-55 °C	Black	Copper Alloy	125 V	Polyester Thermoplastic
EDAC Inc. 627-3W3-224-2N2	1	Grounding Indents Shielded	Steel	Nickel Plated	Solder	2	A DA	3W3	Male Pins Plug	Power	Board Side (4-40)	Gold	UL94 V-0	Panel Mount	0	Flash	Flash	20 A	Combo D-Sub	3	Power	125 °C	-55 °C	Black	Copper Alloy	125 V	Polyester Thermoplastic
EDAC Inc. 627-3W3-622-1NA	1	Grounding Indents Shielded	Steel	Nickel Plated	Solder Cup	2	A DA	3W3	Male Pins Plug	Power	Board Side (M3)	Gold	UL94 V-0	Free Hanging (In-Line)	30 µin			10 A	Combo D-Sub	3	Power	125 °C	-55 °C	Black	Copper Alloy	125 V	Polyester Thermoplastic
EDAC Inc. 627-3W3-624-5T5	1	Board Lock Grounding Indents Shielded	Steel	Tin Plated	Solder	2	A DA	3W3	Male Pins Plug	Coax	Board Side (4-40)	Gold	UL94 V-0	Through Hole	30 µin				Combo D-Sub	3	Coax	125 °C	-55 °C	Black	Copper Alloy	125 V	Polyester Thermoplastic
EDAC Inc. 627-3W3-224-1NB	1	Grounding Indents Shielded	Steel	Nickel Plated	Solder	2	A DA	3W3	Male Pins Plug	Power	Board Side (M3)	Gold	UL94 V-0	Panel Mount	0	Flash	Flash	10 A	Combo D-Sub	3	Power	125 °C	-55 °C	Black	Copper Alloy	125 V	Polyester Thermoplastic
EDAC Inc. 627-3W3-224-3NA	1	Grounding Indents Shielded	Steel	Nickel Plated	Solder	2	A DA	3W3	Male Pins Plug	Power	Board Side (M3)	Gold	UL94 V-0	Panel Mount	0	Flash	Flash	30 A	Combo D-Sub	3	Power	125 °C	-55 °C	Black	Copper Alloy	125 V	Polyester Thermoplastic
EDAC Inc. 627-3W3-624-3N2	1	Grounding Indents Shielded	Steel	Nickel Plated	Solder	2	A DA	3W3	Male Pins Plug	Power	Board Side (4-40)	Gold	UL94 V-0	Panel Mount	30 µin			30 A	Combo D-Sub	3	Power	125 °C	-55 °C	Black	Copper Alloy	125 V	Polyester Thermoplastic
EDAC Inc. 627-3W3-624-7ND	1	Board Lock Grounding Indents Shielded	Steel	Nickel Plated	Solder	2	A DA	3W3	Male Pins Plug	Coax	Board Side (M3)	Gold	UL94 V-0	Through Hole	30 µin				Combo D-Sub	3	Coax	125 °C	-55 °C	Black	Copper Alloy	125 V	Polyester Thermoplastic
