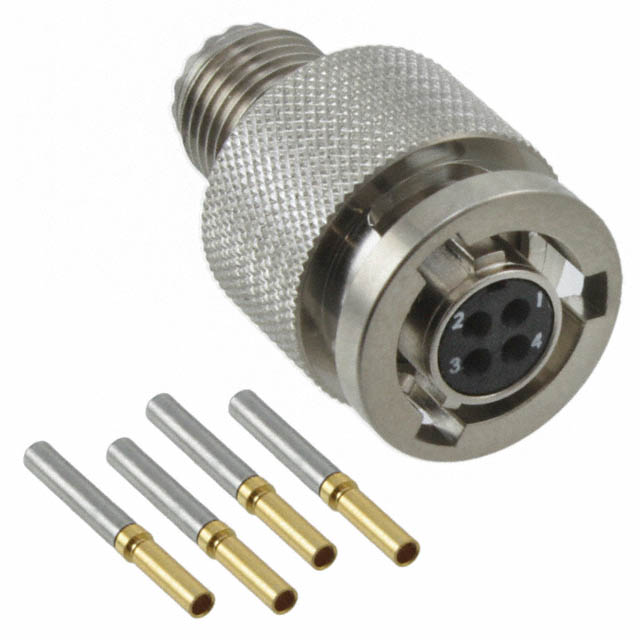

MKJ3B6F6-4SN - 155331-0000

MKJ3B6F6-4SN

Active
ITT Cannon, LLC

CONN PLUG FMALE 4POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
MKJ3B6F6-4SN - 155331-0000

MKJ3B6F6-4SN

Active
ITT Cannon, LLC

CONN PLUG FMALE 4POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationMKJ3B6F6-4SN
Connector TypeFemale Sockets, Plug
Contact Finish - MatingGold
Contact Finish Thickness - Mating1.27 µm
Contact Finish Thickness - Mating50 µin
Current Rating (Amps)5 A
Fastening TypeBayonet Lock
Ingress ProtectionEnvironment Resistant
Mounting TypeFree Hanging (In-Line)
Number of Positions4
Operating Temperature [Max]150 °C
Operating Temperature [Min]-55 °C
OrientationN
Primary MaterialMetal
Shell FinishElectroless Nickel
Shell MaterialAluminum Alloy
Shell Size - Insert [Max]6
Shell Size - Insert [Min]4
ShieldingShielded
TerminationCrimp
Voltage Rating500 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 140.45
10$ 128.88
25$ 123.93
50$ 119.80
NewarkEach 25$ 123.52
50$ 114.52
100$ 112.89
250$ 110.43

Description

General part information

MKJ3B Series

4 Position Circular Connector Plug, Female Sockets Crimp
