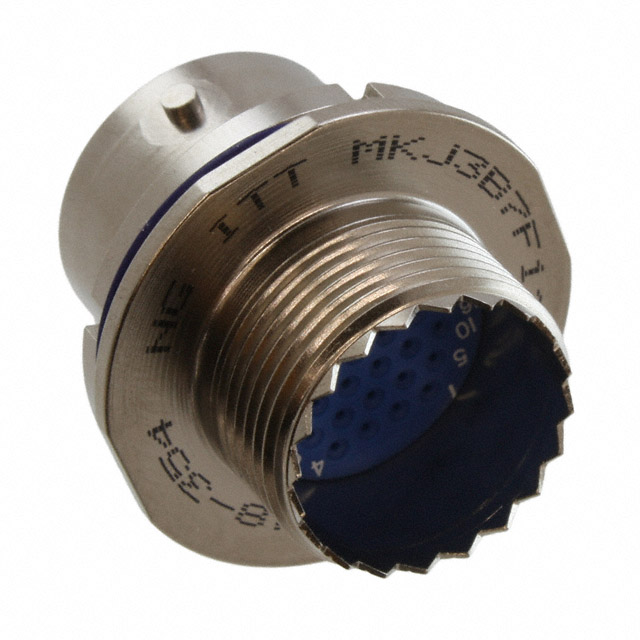

MKJ3B7F12-37PN

Active

ITT Cannon, LLC

CONN RCPT MALE 37POS GOLD CRIMP

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN RCPT MALE 37POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	MKJ3B7F12-37PN

Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Ingress Protection	Environment Resistant
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	37
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	37
Shell Size - Insert [Min]	12
Shielding	Shielded
Termination	Crimp
Voltage Rating	500 VAC

...

Part	Number of Positions	Voltage Rating	Shielding	Fastening Type	Orientation	Ingress Protection	Primary Material	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Mounting Type	Shell Material	Shell Finish	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish - Mating	Connector Type	Mounting Feature
ITT Cannon, LLC MKJ3B6W10-26PX
ITT Cannon, LLC MKJ3B6F6-4PY
ITT Cannon, LLC MKJ3B6F7-10PY
ITT Cannon, LLC MKJ3B7W6-7SX
ITT Cannon, LLC MKJ3B6F8-13PX
ITT Cannon, LLC MKJ3B6F6-4SN	4	500 VAC	Shielded	Bayonet Lock	N	Environment Resistant	Metal	6	4	Free Hanging (In-Line)	Aluminum Alloy	Electroless Nickel	1.27 µm	50 µin	5 A	-55 °C	150 °C	Crimp	Gold	Female Sockets Plug
ITT Cannon, LLC MKJ3B6F7-10PX
ITT Cannon, LLC MKJ3B7F6-7PY
ITT Cannon, LLC MKJ3B6F12-37SY
ITT Cannon, LLC MKJ3B7F12-37PN	37	500 VAC	Shielded	Bayonet Lock	N	Environment Resistant	Metal	37	12		Aluminum Alloy	Electroless Nickel	1.27 µm	50 µin	5 A	-55 °C	150 °C	Crimp	Gold	Male Pins Receptacle	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 185.20

General part information

37 Position Circular Connector Receptacle, Male Pins Crimp
