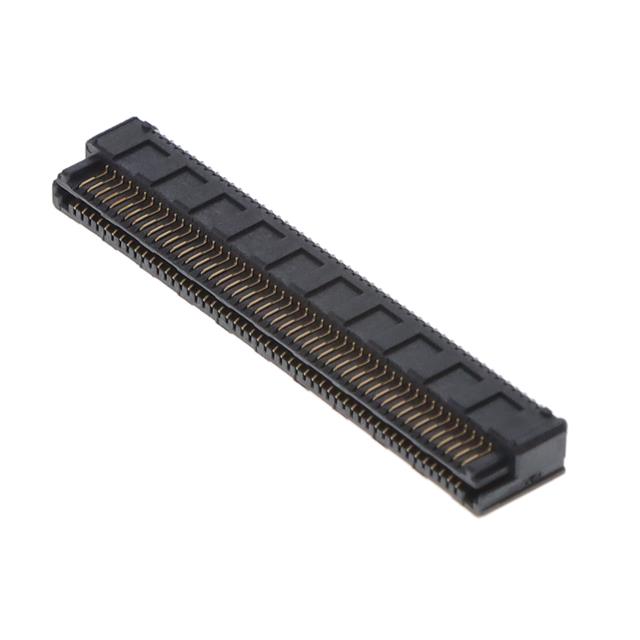

LSEM-150-06.0-F-DV-A-N-K-TR

Active

Samtec Inc.

.8MM HERMAPHRODITIC HORIZONTAL F

Search across all available documentation for this part.

Active

Samtec Inc.

.8MM HERMAPHRODITIC HORIZONTAL F

Technical Specifications

Parameters and characteristics for this part

Specification	LSEM-150-06.0-F-DV-A-N-K-TR

Connector Type	Self Mating, Non-Gendered, Hermaphroditic
Contact Finish	Gold
Contact Finish Thickness	Flash
Features	Pick and Place, Board Guide
Height Above Board [z]	7.45 mm
Height Above Board [z]	0.293 in
Mated Stacking Heights	10 mm, 9 mm, 12 mm
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Contact Finish Thickness	Number of Positions	Height Above Board	Height Above Board	Number of Rows	Pitch [x]	Pitch [x]	Mounting Type	Contact Finish	Features	Mated Stacking Heights	Connector Type	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]
Samtec Inc. LSEM-150-03.0-F-DV-A-N-K-TR	Flash	100	0.175 in	4.45 mm	2	0.8 mm	0.031 in	Surface Mount	Gold	Board Guide Pick and Place	6 mm 7 mm 9 mm	Self Mating Non-Gendered Hermaphroditic
Samtec Inc. LSEM-150-04.0-L-DV-A-N-K-TR		100		0.215 in	2	0.8 mm	0.031 in	Surface Mount	Gold	Board Guide Pick and Place	7 mm 8 mm 10 mm	Self Mating Non-Gendered Hermaphroditic	5.46 mm	10 Áin	0.25 Ám
Samtec Inc. LSEM-150-06.0-F-DV-A-N-K-TR	Flash	100			2	0.8 mm	0.031 in	Surface Mount	Gold	Board Guide Pick and Place	9 mm 10 mm 12 mm	Self Mating Non-Gendered Hermaphroditic				7.45 mm	0.293 in
Samtec Inc. LSEM-150-01-F-DH-A-N-TR	Flash	100	0.202 in	5.13 mm	2	0.8 mm	0.031 in	Surface Mount Right Angle	Gold	Board Guide		Self Mating Non-Gendered Hermaphroditic
Samtec Inc. LSEM-150-01-L-DH-A-N-TR		100	0.202 in	5.13 mm	2	0.8 mm	0.031 in	Surface Mount Right Angle	Gold	Board Guide		Self Mating Non-Gendered Hermaphroditic		10 Áin	0.25 Ám
Samtec Inc. LSEM-150-04.0-L-DV-A-N		100		0.215 in	2	0.8 mm	0.031 in	Surface Mount	Gold	Board Guide	7 mm 8 mm 10 mm	Self Mating Non-Gendered Hermaphroditic	5.46 mm	10 Áin	0.25 Ám
Samtec Inc. LSEM-150-01-F-DH-A-N-K-TR	Flash	100	0.202 in	5.13 mm	2	0.8 mm	0.031 in	Surface Mount Right Angle	Gold	Board Guide Pick and Place		Self Mating Non-Gendered Hermaphroditic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold
