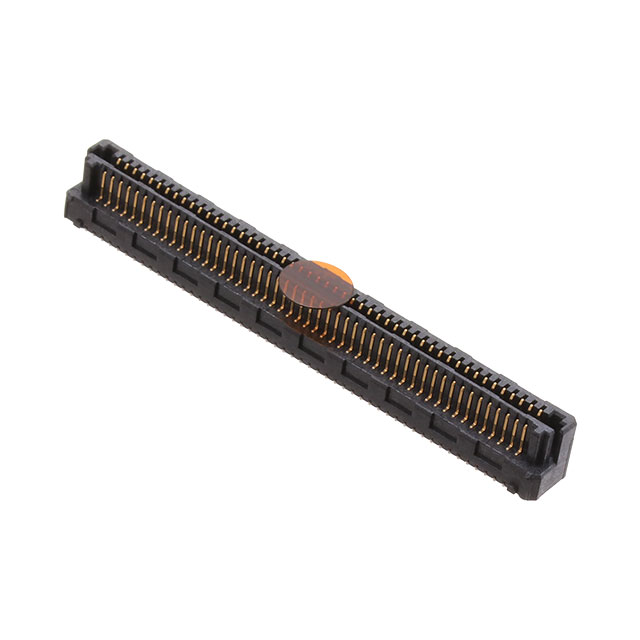

LSEM-150-04.0-L-DV-A-N-K-TR

Active

Samtec Inc.

CONN SELF-MATE 100POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN SELF-MATE 100POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	LSEM-150-04.0-L-DV-A-N-K-TR

Connector Type	Self Mating, Non-Gendered, Hermaphroditic
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place, Board Guide
Height Above Board	0.215 in
Height Above Board	5.46 mm
Mated Stacking Heights	8 mm, 10 mm, 7 mm
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Contact Finish Thickness	Number of Positions	Height Above Board	Height Above Board	Number of Rows	Pitch [x]	Pitch [x]	Mounting Type	Contact Finish	Features	Mated Stacking Heights	Connector Type	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]
Samtec Inc. LSEM-150-03.0-F-DV-A-N-K-TR	Flash	100	0.175 in	4.45 mm	2	0.8 mm	0.031 in	Surface Mount	Gold	Board Guide Pick and Place	6 mm 7 mm 9 mm	Self Mating Non-Gendered Hermaphroditic
Samtec Inc. LSEM-150-04.0-L-DV-A-N-K-TR		100		0.215 in	2	0.8 mm	0.031 in	Surface Mount	Gold	Board Guide Pick and Place	7 mm 8 mm 10 mm	Self Mating Non-Gendered Hermaphroditic	5.46 mm	10 Áin	0.25 Ám
Samtec Inc. LSEM-150-06.0-F-DV-A-N-K-TR	Flash	100			2	0.8 mm	0.031 in	Surface Mount	Gold	Board Guide Pick and Place	9 mm 10 mm 12 mm	Self Mating Non-Gendered Hermaphroditic				7.45 mm	0.293 in
Samtec Inc. LSEM-150-01-F-DH-A-N-TR	Flash	100	0.202 in	5.13 mm	2	0.8 mm	0.031 in	Surface Mount Right Angle	Gold	Board Guide		Self Mating Non-Gendered Hermaphroditic
Samtec Inc. LSEM-150-01-L-DH-A-N-TR		100	0.202 in	5.13 mm	2	0.8 mm	0.031 in	Surface Mount Right Angle	Gold	Board Guide		Self Mating Non-Gendered Hermaphroditic		10 Áin	0.25 Ám
Samtec Inc. LSEM-150-04.0-L-DV-A-N		100		0.215 in	2	0.8 mm	0.031 in	Surface Mount	Gold	Board Guide	7 mm 8 mm 10 mm	Self Mating Non-Gendered Hermaphroditic	5.46 mm	10 Áin	0.25 Ám
Samtec Inc. LSEM-150-01-F-DH-A-N-K-TR	Flash	100	0.202 in	5.13 mm	2	0.8 mm	0.031 in	Surface Mount Right Angle	Gold	Board Guide Pick and Place		Self Mating Non-Gendered Hermaphroditic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold
