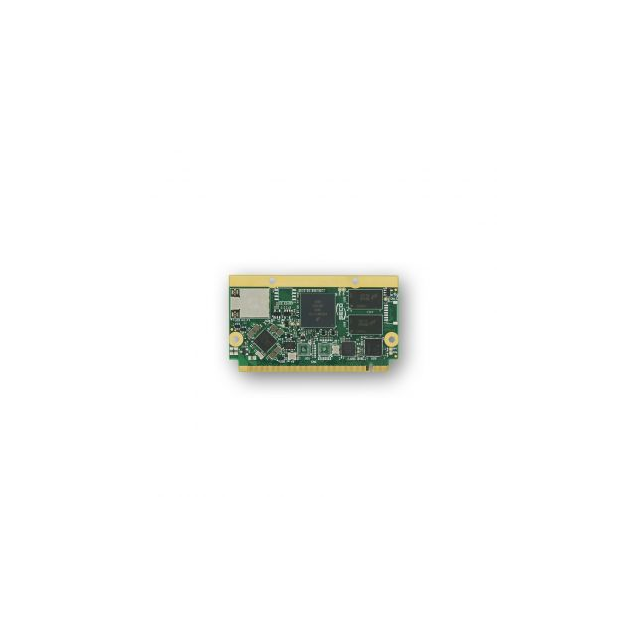

QC72-3220-1101-I2

Active

UDOO

SBC 750MHZ 5 CORE 2GB/0GB RAM

Search across all available documentation for this part.

Active

UDOO

SBC 750MHZ 5 CORE 2GB/0GB RAM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QC72-3220-1101-I2	QC72 Series

Accessory Type	-	Heat Sink Kit, Heat Spreader Kit
Ethernet	GbE	GbE
Expansion Site/Bus	GPIO, CAN, I2C, UART, I2S, USB, PCI, SPI	GPIO, CAN, I2C, UART, I2S, USB, PCI, SPI
Form Factor	Qseven R2.1	Qseven R2.1
Number of Cores	5	5
Operating Temperature [Max]	85 °C	60 - 85 °C
Operating Temperature [Min]	-30 ░C	-30 - 0 ░C
RAM Capacity/Installed	0 GB, 2 GB	0 - 4 GB
Size / Dimension [x]	70.1 mm	70.1 mm
Size / Dimension [x]	2.76 in	2.76 in
Size / Dimension [y]	1.57 "	1.57 "
Size / Dimension [y]	39.87 mm	39.87 mm
Speed	750 MHz	750 MHz
Speed	400 MHz	400 MHz
Storage Interface	SDIO/MMC, eMMC/SD, QSPI	SDIO/MMC, eMMC/SD, QSPI
USB	USB 2.0 (9)	USB 2.0 (9)
Video Outputs	LVDS, eDP	LVDS, eDP
Watchdog Timer	True	True

HEAT SINK Q7-C72 MINI/NANO

Part	Accessory Type	Number of Cores	USB	Video Outputs	Storage Interface	Speed	Speed	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Ethernet	Operating Temperature [Min]	Operating Temperature [Max]	Form Factor	RAM Capacity/Installed	Expansion Site/Bus
UDOO QC72-DISS-2-PK	Heat Sink Kit
UDOO QC72-DISS-1-PK	Heat Spreader Kit
UDOO QC72-3220-1101-I2		5	USB 2.0 (9)	eDP, LVDS	eMMC/SD, QSPI, SDIO/MMC	750 MHz	400 MHz	70.1 mm	2.76 in	1.57 "	39.87 mm	GbE	-30 ░C	85 °C	Qseven R2.1	0 GB, 2 GB	CAN, GPIO, I2C, I2S, PCI, SPI, UART, USB
UDOO QC72-1140-1111-C2		5	USB 2.0 (9)	eDP, LVDS	eMMC/SD, QSPI, SDIO/MMC	750 MHz	400 MHz	70.1 mm	2.76 in	1.57 "	39.87 mm	GbE	0 °C	60 °C	Qseven R2.1	0 GB, 4 GB	CAN, GPIO, I2C, I2S, PCI, SPI, UART, USB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 267.06

General part information

Single Board Computer 400MHz, 750MHz 5 Core 2GB/0GB RAM i.MX 8M Mini
