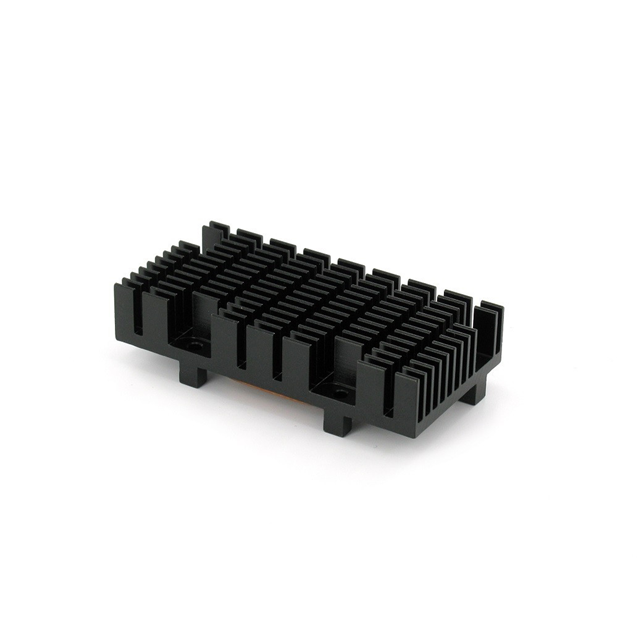

QC72-DISS-2-PK

Active

UDOO

HEAT SINK Q7-C72 MINI/NANO

Search across all available documentation for this part.

Active

UDOO

HEAT SINK Q7-C72 MINI/NANO

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 35.65

General part information

HEAT SINK Q7-C72 MINI/NANO

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	QC72-DISS-2-PK	QC72 Series

Accessory Type	Heat Sink Kit	Heat Sink Kit, Heat Spreader Kit
Ethernet	-	GbE
Expansion Site/Bus	-	GPIO, CAN, I2C, UART, I2S, USB, PCI, SPI
Form Factor	-	Qseven R2.1
Number of Cores	-	5
Operating Temperature	-	-30 - 0 ░C
Operating Temperature	-	60 - 85 °C
RAM Capacity/Installed	-	0 - 4 GB
Size / Dimension	-	70.1 mm
Size / Dimension	-	2.76 in
Size / Dimension	-	1.57 "
Size / Dimension	-	39.87 mm
Speed	-	750 MHz
Speed	-	400 MHz
Storage Interface	-	SDIO/MMC, eMMC/SD, QSPI
USB	-	USB 2.0 (9)
Video Outputs	-	LVDS, eDP
Watchdog Timer	-	True

HEAT SINK Q7-C72 MINI/NANO

Part	Accessory Type	Number of Cores	USB	Video Outputs	Storage Interface	Speed	Speed	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Ethernet	Operating Temperature [Min]	Operating Temperature [Max]	Form Factor	RAM Capacity/Installed	Expansion Site/Bus
UDOO QC72-DISS-2-PK	Heat Sink Kit
UDOO QC72-DISS-1-PK	Heat Spreader Kit
UDOO QC72-3220-1101-I2		5	USB 2.0 (9)	eDP, LVDS	eMMC/SD, QSPI, SDIO/MMC	750 MHz	400 MHz	70.1 mm	2.76 in	1.57 "	39.87 mm	GbE	-30 ░C	85 °C	Qseven R2.1	0 GB, 2 GB	CAN, GPIO, I2C, I2S, PCI, SPI, UART, USB
UDOO QC72-1140-1111-C2		5	USB 2.0 (9)	eDP, LVDS	eMMC/SD, QSPI, SDIO/MMC	750 MHz	400 MHz	70.1 mm	2.76 in	1.57 "	39.87 mm	GbE	0 °C	60 °C	Qseven R2.1	0 GB, 4 GB	CAN, GPIO, I2C, I2S, PCI, SPI, UART, USB
