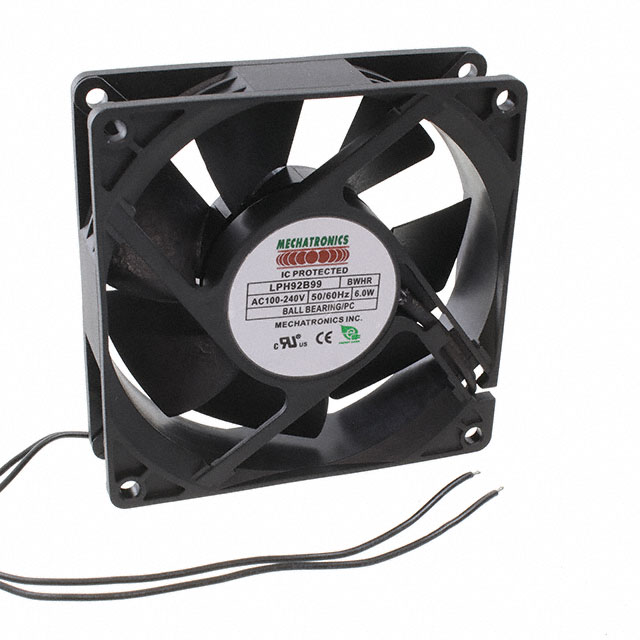

LPH92B99-BWHR-PC

Active

Mechatronics Fan Group

EC FAN AXIAL 92 X 92 X 25MM W/PA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LPH92B99-BWHR-PC

Active

Mechatronics Fan Group

EC FAN AXIAL 92 X 92 X 25MM W/PA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LPH92B99-BWHR-PC	LPH92 Series

Air Flow	1.57 mł/min	1.29 - 1.9 mł/min
Air Flow	56 CFM	46 - 68 CFM
Approval Agency	-	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	60 mA	50 - 110 mA
Fan Type	Tubeaxial	Tubeaxial
Features	Electronic Commutation (EC), Parylene Coating, Auto Restart	Auto Restart, Electronic Commutation (EC), Parylene Coating
Ingress Protection	IP55 - Dust Protected, Water Resistant	IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	-	50000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	44 dB	38 - 44 dB
Operating Temperature	-	70 °C
Operating Temperature	-	70 °C
Operating Temperature	-	-40 °C
Operating Temperature	-	-40 °C
Power (Watts)	6.3 W	3.7 - 6.3 W
RPM	3500 RPM	3000 - 3500 RPM
Static Pressure	67.3 Pa	44.8 - 72.2 Pa
Static Pressure	0.27 in H2O	0.18 - 0.29 in H2O
Termination	2 Wire Leads	2 Terminals, 2 Wire Leads
Voltage - Rated [Max]	240 VAC	240 VAC
Voltage - Rated [Min]	100 VAC	100 VAC
Voltage Range [Max]	264 VAC	264 VAC
Voltage Range [Min]	90 VAC	90 VAC
Weight	0.234 lb	0.234 - 0.384 lb
Weight	106.14 g	106.14 - 174.18 g
Width	-	38 mm
Width [x]	25.5 mm	25.5 mm

LPH92 Series

FAN AXIAL 92X25.5MM 100-240VAC

Part	Current Rating (Amps)	Features	Fan Type	Noise	RPM	Weight	Weight	Material - Frame	Termination	Material - Blade	Width [x]	Power (Watts)	Approval Agency	Voltage - Rated [Min]	Voltage - Rated [Max]	Static Pressure	Static Pressure	Air Flow	Air Flow	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Bearing Type	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Ingress Protection	Width [y]
Mechatronics Fan Group LPH92B99-BTHR	60 mA	Auto Restart, Electronic Commutation (EC)	Tubeaxial	44 dB	3500 RPM	0.234 lb	106.14 g	Plastic	2 Terminals	Plastic	25.5 mm	6.3 W	CE, cUL, TUV, UL	100 VAC	240 VAC	67.3 Pa	0.27 in H2O	56 CFM	1.57 mł/min	70 °C	70 °C	-40 °C	-40 °C	Ball
Mechatronics Fan Group LPH92B99-BTMR	50 mA	Auto Restart, Electronic Commutation (EC)	Tubeaxial	38 dB(A)	3000 RPM			Plastic	2 Terminals	Plastic	25.5 mm	3.7 W	CE, cUL, TUV, UL	100 VAC	240 VAC	44.8 Pa	0.18 in H2O	46 CFM	1.29 mł/min	70 °C	70 °C	-40 °C	-40 °C	Ball	50000 Hrs	90 VAC	264 VAC
Mechatronics Fan Group LPH92B99-BWHR-PC	60 mA	Auto Restart, Electronic Commutation (EC), Parylene Coating	Tubeaxial	44 dB	3500 RPM	0.234 lb	106.14 g	Plastic	2 Wire Leads	Plastic	25.5 mm	6.3 W		100 VAC	240 VAC	67.3 Pa	0.27 in H2O	56 CFM	1.57 mł/min					Ball		90 VAC	264 VAC	IP55 - Dust Protected, Water Resistant
Mechatronics Fan Group LPH92A99-BWHR-PC	110 mA	Auto Restart, Electronic Commutation (EC), Parylene Coating	Tubeaxial	42 dB	3500 RPM	0.384 lb	174.18 g	Plastic	2 Wire Leads	Plastic		5.5 W		100 VAC	240 VAC	72.2 Pa	0.29 in H2O	68 CFM	1.9 m³/min					Ball		90 VAC	264 VAC	IP55 - Dust Protected, Water Resistant	38 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.23
		10	$ 18.93
		25	$ 18.12

Description

General part information

LPH92 Series

Fan Tubeaxial 100 ~ 240VAC Square - 92mm L x 92mm H Ball 56.0 CFM (1.57mł/min) 2 Wire Leads
